Product Details
Place of Origin: China
Brand Name: Tunisng
Certification: SGS , ISO9001
Model Number: DS019300M
Payment & Shipping Terms
Minimum Order Quantity: 100Y
Price: negotiable
Packaging Details: 1PC/PE FILM, 100yard/roll, 2~4roll/CTN, or it's up on the customer's option
Delivery Time: 5-7days
Payment Terms: Western Union, L/C, T/T, PayPal
Supply Ability: 40000 Square meters per day
Color: |
Transparent |
Melting Point(°C): |
90℃ |
Melt Index(g/10min): |
300±30g/10min; Condition:ASTMD1238-04 |
Hot Pressing Temperature(°C): |
120-150℃ |
Physical Form: |
Solid Membranous With Release Paper |
Conventional Thickness: |
0.10mm,0.12mm And 0.15mm |
Conventional Width: |
480mm,960mm |
Length: |
100 Yards |
Density: |
0.96±0.02g/cm³ |
Washing Resistant Time: |
60°C/72H |
Color: |
Transparent |
Melting Point(°C): |
90℃ |
Melt Index(g/10min): |
300±30g/10min; Condition:ASTMD1238-04 |
Hot Pressing Temperature(°C): |
120-150℃ |
Physical Form: |
Solid Membranous With Release Paper |
Conventional Thickness: |
0.10mm,0.12mm And 0.15mm |
Conventional Width: |
480mm,960mm |
Length: |
100 Yards |
Density: |
0.96±0.02g/cm³ |
Washing Resistant Time: |
60°C/72H |

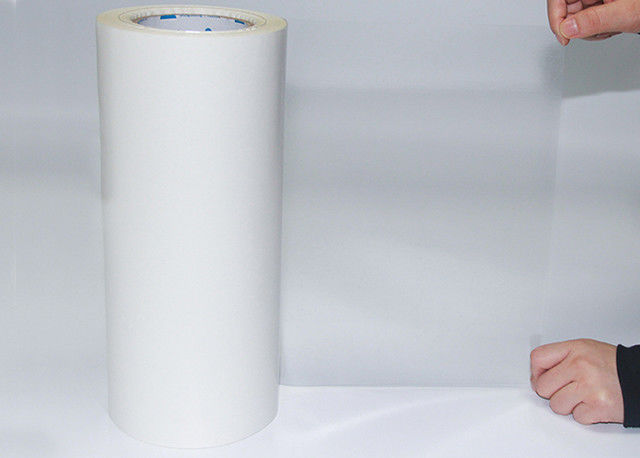

Hot Melt Adhesive Sheets Transparent Po Sensitive Film Melting Point 90℃
Hot Melt Adhesive Sheets Description:
DS019300M is a thermoplastic adhesive product , suitable for wide range of adherend . It can be repeatedly heated for bonding. It performs an excellent adhesion for fabrics, textiles, cotton etc. This adhesive product possesses excellent washability and with good dry cleaning and chemical additives resistant.
Hot Melt Adhesive Sheets Applications:
Development direction and application of DS019100R is for adhesion in garments accessories, footwear, handbags, luggage, embroidery, hot fix, iron logo and crafts .
Hot Melt Adhesive Sheets Composition:
Ethylene acrylic acid copolymer
Hot Melt Adhesive Sheets Physical Characteristics:
| Color | Transparent | Release Protection | Glassine Release Paper |
| Proportion | 0.958±0.02g/cm³ | Conventional Thickness | 0.05mm,0.08mm,0.1mm,0.12mm,0.15mm,0.18mm |
| Melting Range | 70-95℃(Tunsing DSC 214) | Width Range | 5mm-1480mm |
| Liquidity Index | 300±30g/10min (ASTM D1238-04) | Conventional Width | 500mm,1000mm,1280mm,1480mm |
| Activation Temperature | 100-130℃ (Tunsing) | Conventional Length | 100 yards |
| Washing Resistance | 40℃ | Finished Product | 500mm*100yards/roll |
1, Bonding temperature and pressure as well as the time involved in the strength of the film to material. Bonding temperature must be close to the machine set the temperature, the pressure must be uniform, mold and pressure roller must be flat.
2, In different machinery and materials, the bonding conditions used will be different. The conditions marked here are only basic. The optimum bonding conditions should be made by creating suitable construction conditions for the particular application damage, direct or consequential, arising out of the use, misuse or inability to use the product.
NOTICE: Seller hereby excludes any express warranties and the implied warranties of merchantability and fitness for a particular purpose. The following is made in lieu of any such warranties. Tunsing believes the information supplied are reliable, but does not guarantee that any results shown or claimed will be obtained. Before using the user shall determine the suitability and fitness of the product for its intended use. The user assumes all risks and liability whatever in connection with its own tests and use. Neither seller nor manufacturer shall be liable for any injury, loss or damage, direct or consequential, arising out of the use, misuse or inability to use the product.
