Product Details
Place of Origin: China
Brand Name: Tunsing
Certification: RoHs, REACH
Model Number: DS8501
Payment & Shipping Terms
Minimum Order Quantity: 100yrads
Price: USD 0.3-1.5 per yard
Packaging Details: 100 yards per carton
Delivery Time: Shipped in 3-5 days after payment
Payment Terms: T/T
Supply Ability: 10000 meters per day
Color: |
Transparent |
Density: |
1.18±0.02g/cm3 |
Opening Time: |
10min |
Hardness: |
82±2 Shore A |
Melt Flow Index: |
5±1g/10min; Condition:ASTMD1238-04 |
Rheology Temperature: |
112°C |
Operating Temperature: |
130°C -160°C |
Color: |
Transparent |
Density: |
1.18±0.02g/cm3 |
Opening Time: |
10min |
Hardness: |
82±2 Shore A |
Melt Flow Index: |
5±1g/10min; Condition:ASTMD1238-04 |
Rheology Temperature: |
112°C |
Operating Temperature: |
130°C -160°C |

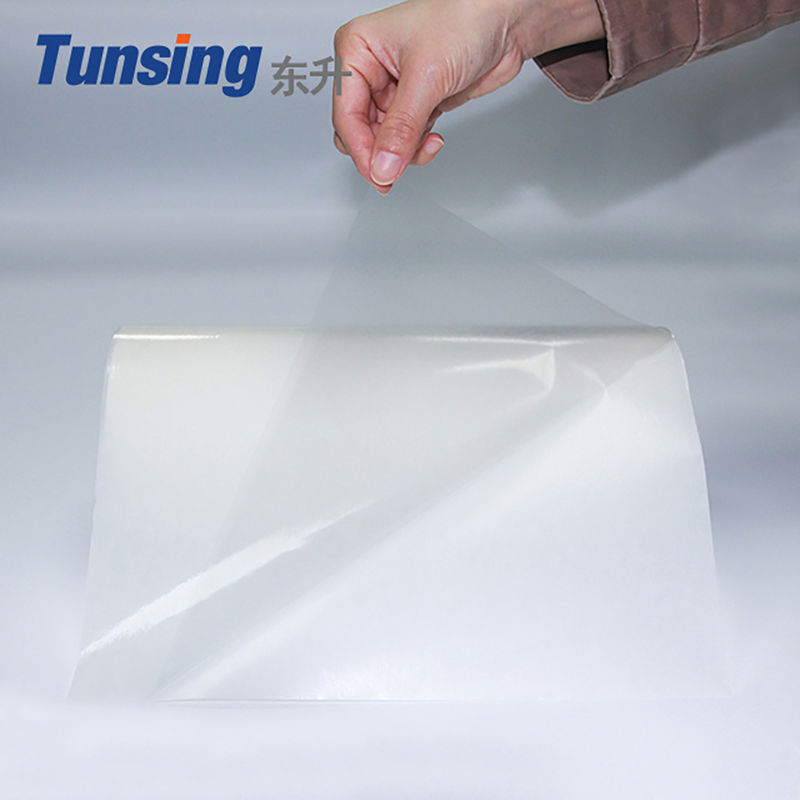

High Flexible Polyurethane Hot Melt Adhesive Film 0.15 Thickness For Fabric
Hot melt adhesive film descrition:
DS8501 is a thermoplastic material, for a variety of materials can be applied to the hot melt adhesive, It can repeatedly heated plastic bonding. This kind of hot melt adhesive has good adhesion to textile, polyester, cotton, blended fabric, TPU, PVC, PC / ABS, and has good resilience, elasticity, heat resistance, cold resistance and water resistance .
Hot melt adhesive film Composition:
Polyurethane
TPU Hot Melt Adhesive Film Physical Characteristics:
|
Color |
transparent |
Release Liner |
Glassine release paper |
|
Density |
1.18±0.02g/cm3 |
Thickness |
0.0125mm-1mm |
|
Opening Time |
10min |
Width |
5mm-1500mm |
|
Hardness |
82±2 Shore A |
Conventional thickness |
0.05mm,0.08mm,0.15mm |
|
Melt Flow Index |
5±1g/10min; |
Conventional Width |
1380mm |
|
Rheology Temperature |
112°C |
Length |
100 yards |
|
Operating Temperature |
130°C -160°C |
Finished Products specification |
1380mm*100yards/roll |
TPU Hot Melt Adhesive Film Recommended Bonding Conditions:
|
Flat Press |
Second Flat Press |
|
Machine Setting: 120℃-140℃ |
Machine Setting: 130℃-160℃ |
|
Dwell Time: 5-15 seconds |
Dwell Time: 8-25seconds |
|
Pressure: 0.3-0.6mpa |
Pressure: 0.3-0.6mpa |
Hot melt adhesive film application
DS8501 development direction and application is for clothing, shoes, textile accessories, handbags, luggage, ipad protective cover, mobile phone protective cover, sports equipment and other materials bonding.
TPU Hot Melt Adhesive Film Customer feedback
Exhibition
1. 14th Dhaka International Yarn & Fabric Show 2018
2. TRUSTECH 2018 in France
3.Smart Cards Expo 2018 in India
We will have the exhibition in Singapore in June, welcome to all of friends to come to our booth.
TPU Hot Melt Adhesive Film Packing and Delivery
1PC/PE FILM, 100yard/roll, 2~4roll/CTN, or it's up on the customer's option.
Shipped in 3-5 days after payment
