Product Details
Place of Origin: China
Brand Name: Tunsing
Certification: RoHs, REACH
Model Number: DS002-2
Payment & Shipping Terms
Minimum Order Quantity: 100y/roll
Price: USD 0.34-0.45 dollar per yard
Packaging Details: 100yards per roll
Delivery Time: Shipped in 3-5 days after payment
Payment Terms: T/T
Supply Ability: 150000 meters per month
Keywords: |
PA Hot Melt Adhesive Film |
Melting Range: |
100-125℃ （Tunsing DSC 214) |
Opearted Temperature: |
150-170℃ |
Pressure: |
0.3-0.6mpa |
Time: |
10-15S |
Melt Flow Index: |
45±17g/10min (ASTM D1238-04) |
Mechanical Mold Temperature: |
150℃-170℃ |
Keywords: |
PA Hot Melt Adhesive Film |
Melting Range: |
100-125℃ （Tunsing DSC 214) |
Opearted Temperature: |
150-170℃ |
Pressure: |
0.3-0.6mpa |
Time: |
10-15S |
Melt Flow Index: |
45±17g/10min (ASTM D1238-04) |
Mechanical Mold Temperature: |
150℃-170℃ |

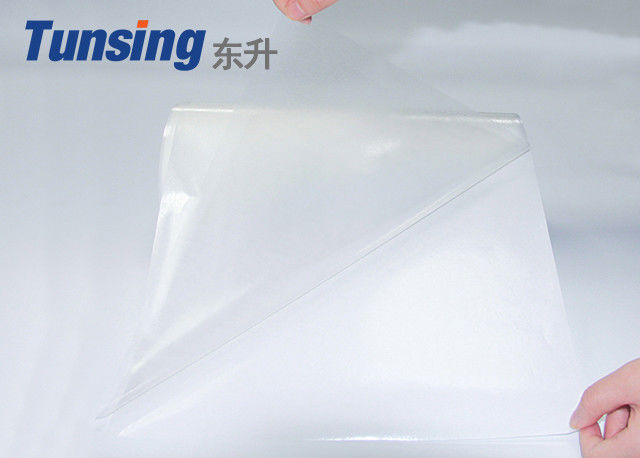

Tunsing Copolyamide PA Hot Melt Adhesive Film for Fabric
PA Hot Melt Adhesive Film Product: DS002-2
PA Hot Melt Adhesive Film Description
This product is a thermoplastic hot-melt adhesive film, which is supported by release paper and can be repeatedly heated and plasticized.This hot melt adhesive has excellent adhesion to textiles(cotton,nylon,chemical fiber, blended fabric).This product has dry cleaning and 90℃ washing resistance.
PA Hot Melt Adhesive Film Composition: Copolyamide
PA Hot Melt Adhesive Film Physical Characteristics:
| Color | Light Blue Transparent | Release Protection | Glassine Release Paper |
| Proportion | 1.15±0.02g/cm³ | Conventional Thickness | 0.05mm,0.08mm,0.1mm,0.12mm,0.15mm,0.18mm |
| Melting Range | 100-125℃ (Tunsing DSC 214) | Width Range | 5mm-1480mm |
| Liquidity Index | 45±17g/10min (ASTM D1238-04) | Conventional Width | 500mm,1000mm,1280mm,1480mm |
| Activation Temperature | 125-150℃ (Tunsing) | Finished Product | 500mm*100yards/roll |
PA Hot Melt Adhesive Film Recommended Bonding Conditions:
| First Lamination | Second Implanting | ||
| Mechanical Mold Temperature | 150℃-170℃ | Mechanical Mold Temperature | 150℃-170℃ |
| Time | 5-15 seconds | Packing Time | 8-25 seconds |
| Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |
PA Hot Melt Adhesive Film Application
DS002-2 is used in the bonding of clothing, embroidery, footwear, luggage, handbags, toys, hats, sports materials.
PA Hot Melt Adhesive Film Packing & Delivery
Our conventional width is 50/100cm, length is 100yards per roll. Size can be customized. Two rolls per carton.
