Product Details
Place of Origin: China
Brand Name: Tunsing
Certification: RoHs REACH Oeko-tex
Model Number: DS019YM
Payment & Shipping Terms
Minimum Order Quantity: 100Yards
Price: USD1.55-1.76/Yard
Packaging Details: 100 Yards in roll, 2 rolls in case
Delivery Time: 3-7 work days
Payment Terms: T/T
Supply Ability: 4000000m/month
Release Protection: |
Glassine Release Paper |
Composition: |
EAA |
Proportion: |
1.2±0.02g/cm³ |
Melt Point DSC: |
90℃ |
Operating Temperature: |
120℃-140℃ |
Melt Flow Index: |
300±10g/10min ; Condition:ASTMD1238-04 |
Washing Resistant Time: |
40°C/72H |
Conventional Width: |
480mm |
Conventional Thickness: |
0.08mm (hot Melt 0.08mm+acrylics 0.1mm) |
Release Protection: |
Glassine Release Paper |
Composition: |
EAA |
Proportion: |
1.2±0.02g/cm³ |
Melt Point DSC: |
90℃ |
Operating Temperature: |
120℃-140℃ |
Melt Flow Index: |
300±10g/10min ; Condition:ASTMD1238-04 |
Washing Resistant Time: |
40°C/72H |
Conventional Width: |
480mm |
Conventional Thickness: |
0.08mm (hot Melt 0.08mm+acrylics 0.1mm) |

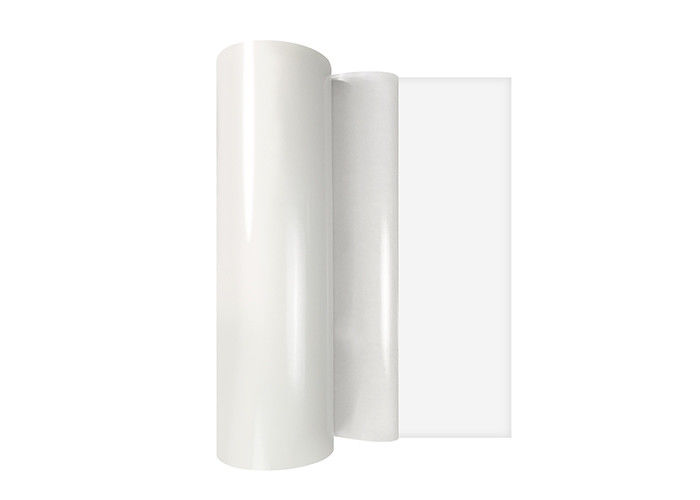

Film Manufacturers Hot Sell Double Sided Eaa Hot Melt Adhesive
Product: DS019YM
Description:
This product is a self-adhesive hot melt film. Double layer structure: the first layer is hot melt adhesive (no viscosity under normal temperature, need to be heated), and the other layer is acrylic acid pressure sensitive adhesive (in normal temperature, there is self-adhesive energy and the entrusted off-type paper).Self-adhesive level can be no less than 150 degree temperature, not lose the glue, and also can be paste repeatedly, in line with the European demand index.
Composition:Ethylene acrylic copolymer
Physical Characteristics:
|
Color
|
transparent
|
Release liner
|
Glassine release paper
|
|
Density
|
1.2±0.02g/cm³
|
Conventional Thickness
|
0.08mm
(hot melt 0.08mm+acrylics 0.1mm)
|
|
Melting point
|
90℃
|
Width
|
6mm-1000mm
|
|
Operating Temperature
|
120℃-140℃
|
Conventional Width
|
480mm
|
|
Melt Flow Index
|
300±10g/10min ;
Condition:ASTMD1238-04
|
Length
|
100 yards
|
|
Washing Resistant Time
|
40°C/72H
|
Finished Products Specification
|
480mm(width)*100yards(length)/roll
|
Recommended Bonding Conditions:
| Flat Press: |
| Machine Setting: 120℃-140℃ |
| Dwell Time: 5-15 seconds |
| Pressure: 0.3-0.6mpa |
1. Bonding temperature and pressure and time relate to the bonding strength of the film to the material. The bonding temperature must be close to the temperature set by the machine, the pressure must be uniform, and the mold and press rolls must be flat.
2. The bonding conditions used will vary between machines and materials. The conditions indicated here are only basic. The most ideal bonding conditions should be established by manufacturing for the specific application.
Note: The seller hereby declares that Tunsing will refuse to accept the assurance of the components of the manufacturing process.
Tunsing firmly believes that the information content is reliable. However, the claims for possible problems will not be guaranteed for the components of a particular process. Before use, the manufacturer must determine the suitability of the product for the items to be used. The user must bear the risks and possible problems in the various manufacturing stages of testing and use. The Seller and the manufacturer shall not be liable for any direct injury, loss, damage or misuse.
Application:
DS019YM is used in the bonding of clothing, embroidery, footwear, luggage, handbags, toys, hats, sports materials.
Related Products:
Packaging & Shipping
packing: 100Y/roll , 2rolls/ctn
shipping: 5-7days
Company Profile:
Testing Equipment:
Exhibition:
Certifications:
FAQ:
1 .How about hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt
point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different
usages, we need understand your demands ,then recommend you right products to you.
2.Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years experience. able to
assist you R&D new products. So if you need bonding some special materials, please don't hesitate to let us know.
3.How do you transport the products?
If you are not urgent, we usually transport by ship because it is the cheapest way. But for the West Asia area,
we deliver by train because there is no sea to ship. And for samples and urgent cargo, we transport it by air as it is the fastest
way .Of course if you have other better idea about transport, we will accept it.
4. May I have your samples?
If you need some sample for reference, please let us know your fully address/ship
mode with courier ,and we will arrange sample for your reference.
5. How long is the lead time?
Sample lead time:3-7 days
Bulk lead time:7-10 days(depends on order quantity)
6. How do I pay for my order?
We accept T/T , Paypal
