Product Details
Place of Origin: China
Brand Name: Tunsing
Certification: RoHs REACH Oeko-tex
Model Number: DS0012
Payment & Shipping Terms
Minimum Order Quantity: 100Yards
Price: USD0.26-0.52Yard
Packaging Details: 100 Yards in roll, 2 rolls in case
Delivery Time: 3-7 work days
Payment Terms: T/T
Supply Ability: 4000000m/month
Release Protection: |
Glassine Release Paper |
Composition: |
PES |
Proportion: |
1.15±0.02g/cm³ |
Melting Range: |
85-120℃ (Tunsing DSC 214) |
Liquidity Index: |
20±10g/10mi (ASTM D1238-04） |
Activation Temperature: |
116-157℃ （Tunsing) |
Washing Resistance: |
40℃ |
Conventional Width: |
500mm,1000mm, |
Al Thickness: |
0.06mm0.08mm,0.10mm,0.12mm,0.15mm,0.18mm |
Release Protection: |
Glassine Release Paper |
Composition: |
PES |
Proportion: |
1.15±0.02g/cm³ |
Melting Range: |
85-120℃ (Tunsing DSC 214) |
Liquidity Index: |
20±10g/10mi (ASTM D1238-04） |
Activation Temperature: |
116-157℃ （Tunsing) |
Washing Resistance: |
40℃ |
Conventional Width: |
500mm,1000mm, |
Al Thickness: |
0.06mm0.08mm,0.10mm,0.12mm,0.15mm,0.18mm |
Product: DS0012
Description:

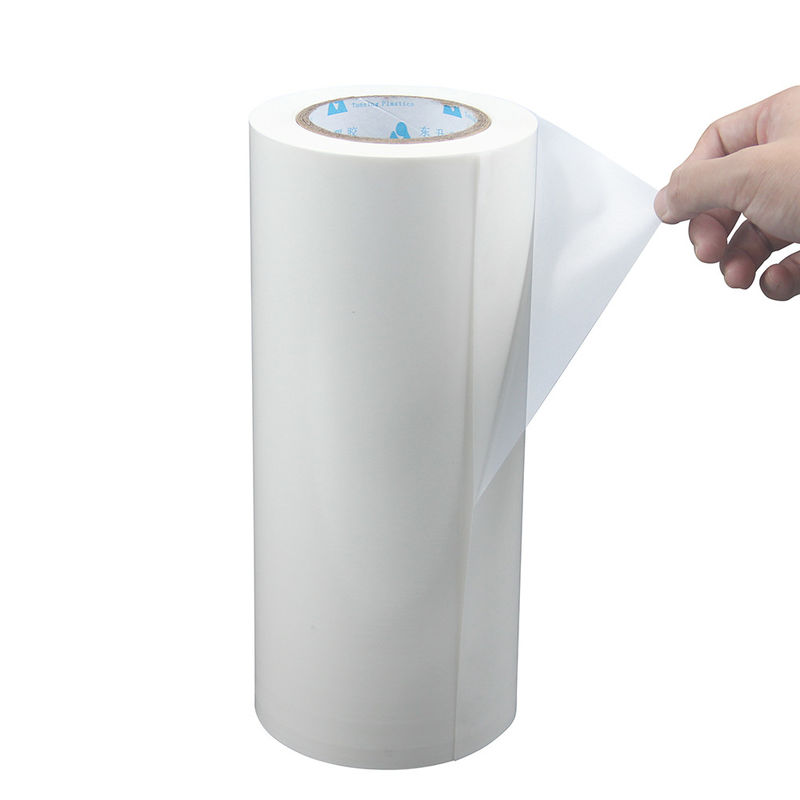

This product is a thermoplastic film hot melt adhesive, entrusted to the release of paper, can be repeatedly heated plasticized bonding.This kind of hot melt adhesive has excellent adhesion to textile products, PVC and PC.This product is resistant to dry cleaning and 40℃ washing.
Applications:
DS0012 is applied to the adhesion of clothing, shoes, accessories, reflective materials, handbags, bags, embroidery and handicrafts.
Composition: Copolyester
Physical Characteristics:
| Colour | Milky white translucent | Release Protection | Glassine Release Paper |
| Proportion | 1.15±0.02g/cm³ | Conventional Thickness | 0.06mm0.08mm,0.10mm,0.12mm,0.15mm,0.18mm |
| Melting Range | 85-120℃ (Tunsing DSC 214) | Width | 10mm-1480mm |
| Liquidity Index | 20±10g/10mi (ASTM D1238-04) | Conventional Width | 500mm,1000mm,1280mm,1480mm |
| Activation Temperature | 116-157℃ (Tunsing) | Conventional Length | 100 M |
| Washing Resistant | 40℃ | Finished Product | 500mm*100M/roll |
| First Lamination | Second Implanting | ||
| Mechanical Mold Temperature | 130℃-140℃ | Mechanical Mold Temperature | 130℃-180℃ |
| Hot Pressing Time | 5-15 seconds | Hot Pressing Time | 8-25 seconds |
| Pressure | 0.3-0.6mpa | Finished Product | 0.3-0.6mpa |
1. Bonding temperature and pressure and time relate to the bonding strength of the film to the material. The bonding temperature must be close to the temperature set by the machine, the pressure must be uniform, and the mold and press rolls must be flat.
2. The bonding conditions used will vary between machines and materials. The conditions indicated here are only basic. The most ideal bonding conditions should be established by manufacturing for the specific application.
Note: The seller hereby declares that Tunsing will refuse to accept the assurance of the components of the manufacturing process.
Tunsing firmly believes that the information content is reliable. However, the claims for possible problems will not be guaranteed for the components of a particular process. Before use, the manufacturer must determine the suitability of the product for the items to be used. The user must bear the risks and possible problems in the various manufacturing stages of testing and use. The Seller and the manufacturer shall not be liable for any direct injury, loss, damage or misuse.
Related Products:
Packaging & Shipping
packing: 100Y/roll , 1roll/ctn
shipping: 5-7days
Company Profile:
Testing Equipment:
Exhibition:
Certifications:
FAQ:
1 .How about hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt
point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different
usages, we need understand your demands ,then recommend you right products to you.
2.Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years experience. able to
assist you R&D new products. So if you need bonding some special materials, please don't hesitate to let us know.
3.How do you transport the products?
If you are not urgent, we usually transport by ship because it is the cheapest way. But for the West Asia area,
we deliver by train because there is no sea to ship. And for samples and urgent cargo, we transport it by air as it is the fastest
way .Of course if you have other better idea about transport, we will accept it.
4. May I have your samples?
If you need some sample for reference, please let us know your fully address/ship
mode with courier ,and we will arrange sample for your reference.
5. How long is the lead time?
Sample lead time:3-7 days
Bulk lead time:7-10 days(depends on order quantity)
6. How do I pay for my order?
We accept L/C ,T/T ,Western Union , Paypal , Escrow
