Product Details
Place of Origin: China
Brand Name: Tunsing
Certification: RoHs, REACH
Model Number: DS0404
Payment & Shipping Terms
Minimum Order Quantity: 100 yards
Price: USD 0.36-0.82 per yards
Packaging Details: 200 yards per carton
Delivery Time: Shipped in 3-5 days after payment
Payment Terms: T/T
Supply Ability: 100000ROLLS
Proportion: |
1.15±0.02g/cm³ |
Melting Range: |
90-120℃ (Tunsing DSC 214) |
MI: |
32±15g/10min(ASTM D1238-04) |
Activation Temperature: |
116-150℃(Tunsing) |
Release Protection: |
Glassine Release Paper |
Glassine Release Paper: |
Milky White Translucent |
Proportion: |
1.15±0.02g/cm³ |
Melting Range: |
90-120℃ (Tunsing DSC 214) |
MI: |
32±15g/10min(ASTM D1238-04) |
Activation Temperature: |
116-150℃(Tunsing) |
Release Protection: |
Glassine Release Paper |
Glassine Release Paper: |
Milky White Translucent |

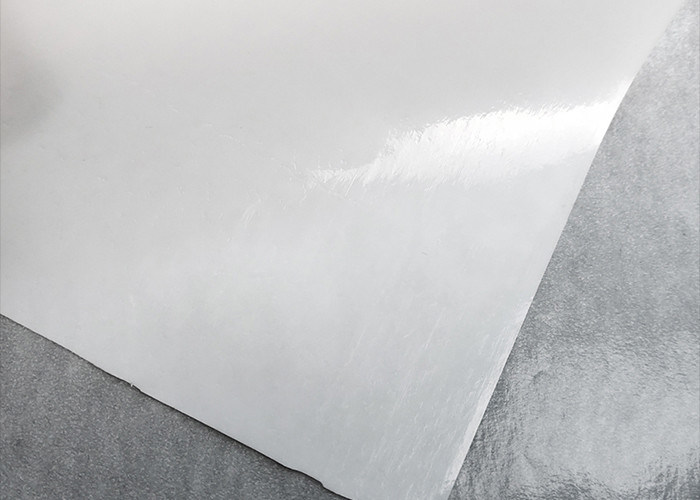

PES hot melt adhesive film for textile fabric
This product is a thermoplastic film hot melt adhesive, entrusted to the release of paper, can be repeatedly heated plasticized bonding.This kind of hot melt adhesive has excellent adhesion to textile products, PVC, PC.This product is resistant to dry cleaning and 40℃ washing.
DS001TS is applied in clothing, footwear, accessories, reflective materials, handbags, bags, embroidery, crafts bonding.
Physical Characteristics:
| Colour | Milky white translucent | Release Protection | Glassine Release Paper |
| Proportion | 1.15±0.02g/cm³ | Conventional Thickness | 0.05mm,0.08mm,0.10mm,0.12mm,0.15mm |
| Melting Range | 90-120℃ (Tunsing DSC 214) | Width | 10mm-1480mm |
| MI | 32±15g/10min(ASTM D1238-04) | Conventional Width | 500mm,1000mm,1280mm,1480mm |
| Activation Temperature | 116-150℃(Tunsing) | Conventional Length | 100 yards |
| Washing Resistant | 40℃ | Finished Product | 500mm*100yards/roll |
Recommended Bonding Conditions:
| First Lamination | Second Implanting | ||
| Mechanical Mold Temperature | 130℃-160℃ | Mechanical Mold Temperature | 130℃-170℃ |
| Hot Pressing Time | 5-15 seconds | Hot Pressing Time | 8-25 seconds |
| Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |
Packing & Delivery
Our conventional width is 50,100cm, length is 100y per roll. Size can be customized. Two rolls per carton.
Application
Related Products
Customer Feedback
Our company
Shenzhen Tunsing Plastic Products Co., Ltd was established in 2007. More thanthirteen years of hot melt adhesive development process, It has professional polymer technology team and set research, development, production and sales as one.
Our company is currently equipped with imported modified hot melt adhesive production line (underwater pelletizing), with an annual output of 1,000 tons. Five sets of different width hot melt adhesive coating lines (1480mm,1380mm,1280mm, 1000mm, 620mm), with an annual output of 12 million meters. Four sets of full numerically controlled infrared automatic edge trimming and slitting machines, one set of numerical control cutting machines, and one set of high-speed anti-crease special composite units. It integrates granulation, film formation, slitting and compounding.
Company specializes in the production and sales of TPU, PA, PES, PP, PE, Polyolefins, EVA and EAA hot melt adhesive film, hot melt adhesive granules and hot melt adhesive powder. These products are widely used in clothing,embroidery,shoes,luggage,toys,caps,sporting goods, electronics, precision instruments, aviation, and automobiles.
Our company has passed ISO9001:2015 quality management system certification, and all products in our company are up to RoHS,REACH, Oeko-tex, California Proposition 65, Halogen Test Report, PFOA, PFOS, PAHS, HBCDD and other environmental standards.
Exhibition
We go to exhibitions at home and abroad every year and visit our customers abroad.
FAQ
1 .How about hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt
point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different
usages, we need understand your demands ,then recommend you right products to you.
2.Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years experience. able to
assist you R&D new products. So if you need bonding some special materials, please don't hesitate to let us know.
3.How do you transport the products?
If you are not urgent, we usually transport by ship because it is the cheapest way. But for the West Asia area, we deliver by train because there is no sea to ship. And for samples and urgent cargo, we transport it by air as it is the fastest way .Of course if you have other better idea about transport, we will accept it.
4. May I have your samples?
If you need some sample for reference, please let us know your fully address/ship mode with courier ,and we will arrange sample for your reference.
5. How long is the lead time?
Sample lead time:3-7 days
Bulk lead time:7-10 days(depends on order quantity)
6. How do I pay for my order?
We accept L/C ,T/T ,Western Union , Paypal , Escrow
