|Hardness:||82±2 Shore A||Melt Flow Index:||5±1g/10min; Condition:ASTMD1238-04|
|Rheology Temperature:||112°C||Operating Temperature:||130°C -160°C|
Tpu Adhesive Tape Film,
Elastic Glue Adhesive Tape Film,
Seamless Underwear Tpu Adhesive Film
Double Side Adhesive Tape Tpu Film Elastic Glue For Seamless Underwear

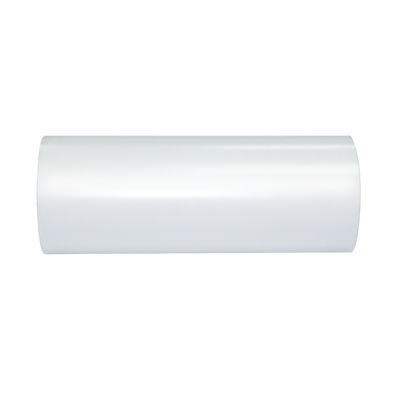

Hot melt adhesive film Product: DS8501
Hot melt adhesive film descrition:
DS8501 is a thermoplastic material, for a variety of materials can be applied to the hot melt adhesive, It can repeatedly heated plastic bonding. This kind of hot melt adhesive has good adhesion to textile, polyester, cotton, blended fabric, TPU, PVC, PC / ABS, and has good resilience, elasticity, heat resistance, cold resistance and water resistance .
Hot melt adhesive film Composition:
Hot melt adhesive film application
DS8501 development direction and application is for clothing, shoes, textile accessories, handbags, luggage, ipad protective cover, mobile phone protective cover, sports equipment and other materials bonding.
TPU Hot Melt Adhesive Film Physical Characteristics:
|Color||transparent||Release Liner||Glassine release paper|
|Hardness||82±2 Shore A||Conventional thickness||0.05mm,0.08mm,0.15mm|
|Melt Flow Index||5±1g/10min;
|Rheology Temperature||112°C||Length||100 yards|
||130°C -160°C||Finished Products specification||1380mm*100yards/roll|
TPU Hot Melt Adhesive Film Recommended Bonding Conditions:
|Flat Press||Second Flat Press|
|Machine Setting: 120℃-140℃||Machine Setting: 130℃-160℃|
|Dwell Time: 5-15 seconds||Dwell Time: 8-25seconds|
|Pressure: 0.3-0.6mpa||Pressure: 0.3-0.6mpa|
1,Bonding temperature and pressure as well as the time involved in the strength of the film to material. Bonding temperature must be close to the machine set the temperature, the pressure must be uniform, mold and pressure roller must be flat.
2,In different machinery and materials, the bonding conditions used will be different. The conditions marked here are only basic. The optimum bonding conditions should be made by creating suitable construction conditions for the particular applicationdamage, direct or consequential, arising out of the use, misuse or inability to use the product.
TPU Hot Melt Adhesive Film Related Products
TPU Hot Melt Adhesive Film Customer feedback
TPU Hot Melt Adhesive Film Packing and Delivery
1PC/PE FILM, 100yards/roll, 1roll/CTN, or it's up on the customer's option.
Shipped in 3-5 days after payment.
