Shenzhen Tunsing Plastic Products Co., Ltd.
ts02@tunsing.com.cn
86-755-8996-0062
Product Details
Place of Origin: China
Brand Name: Tunsing
Certification: RoHs, REACH
Model Number: DS8507
Payment & Shipping Terms
Minimum Order Quantity: 100 yards
Price: USD 0.36-0.82 per yards
Packaging Details: 100 yards per carton
Delivery Time: Shipped in 3-5 days after payment
Payment Terms: T/T
Supply Ability: 100000 meters per day
|
Density:
|
1.18±0.02g/cm3
|
Opening Time:
|
10min
|
Hardness:
|
72±2 Shore A
|
Melt Flow Index:
|
10±5g/10min
|
Melting Range:
|
105-125°C
|
Operating Temperature:
|
130°C -180°C
|
|
Density:
|
1.18±0.02g/cm3
|
|
Opening Time:
|
10min
|
|
Hardness:
|
72±2 Shore A
|
|
Melt Flow Index:
|
10±5g/10min
|
|
Melting Range:
|
105-125°C
|
|
Operating Temperature:
|
130°C -180°C
|

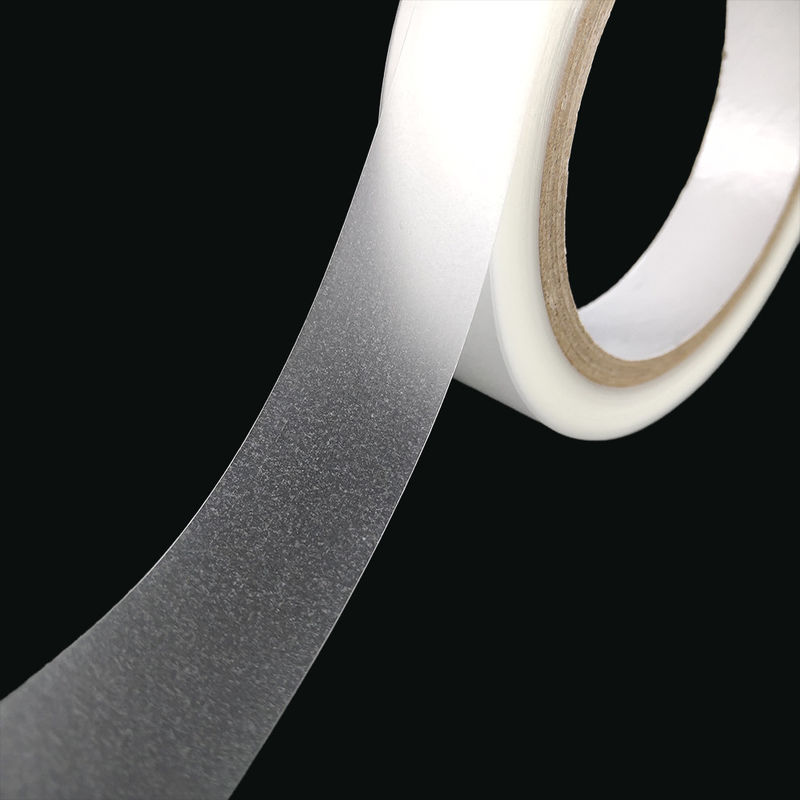

Textile Double Sided Tpu Film Hot Melt Adhesive Film
Hot melt adhesive film descrition:
This product is a thermoplastic film hot melt adhesive with the release paper, can be repeatedly heated and plasticized for bonding.This kind of hot melt adhesive has excellent excellent for textiles, TPU and PVC.It has the characteristics of low melt flow index, good hand feel and resilience, excellent heat resistance, cold resistance.
Hot melt adhesive film Composition:
Polyurethane
Hot melt adhesive film application
DS8501 development direction and application is for clothing, shoes, textile accessories, handbags, luggage, ipad protective cover, mobile phone protective cover, sports equipment and other materials bonding.
TPU Hot Melt Adhesive Film Physical Characteristics:
| Color | Transparent | Release Liner | Glassine release paper |
| Density | 1.18±0.02g/cm3 | Thickness | 0.025mm-0.3mm |
| Opening Time | 10min | Width | 5mm-1580mm |
| Hardness | 72±2 Shore A | Conventional thickness | 0.05mm,0.08mm,0.15mm |
| Melt Flow Index | 10±g/10min; Condition:ASTMD1238-04 |
Conventional Width | 1380mm |
| Melting Range | 105-125°C | Length | 100 yards |
| Operating Temperature |
130°C -180°C | Finished Products specification | 1380mm*100yards/roll |
TPU Hot Melt Adhesive Film Recommended Bonding Conditions:
| Flat Press | Second Flat Press |
| Machine Setting: 130℃-170℃ | Machine Setting: 130℃-180℃ |
| Dwell Time: 5-15 seconds | Dwell Time: 8-25seconds |
| Pressure: 0.3-0.6mpa | Pressure: 0.3-0.6mpa |
1,Bonding temperature and pressure as well as the time involved in the strength of the film to material. Bonding temperature must be close to the machine set the temperature, the pressure must be uniform, mold and pressure roller must be flat.
2,In different machinery and materials, the bonding conditions used will be different. The conditions marked here are only basic. The optimum bonding conditions should be made by creating suitable construction conditions for the particular applicationdamage, direct or consequential, arising out of the use, misuse or inability to use the product.
TPU Hot Melt Adhesive Film Related Products
TPU Hot Melt Adhesive Film Customer feedback
Exhibition
1. 14th Dhaka International Yarn & Fabric Show 2018
2. TRUSTECH 2018 in France
3.Smart Cards Expo 2018 in India
We will have the exhibition in Singapore in June, welcome to all of friends to come to our booth.
Our company
Shenzhen Tunsing Plastic Products Co., Ltd was established in 2007. More thanthirteen years of hot melt adhesive development process, It has professional polymer technology team and set research, development, production and sales as one.
Our company is currently equipped with imported modified hot melt adhesive production line (underwater pelletizing), with an annual output of 1,000 tons. Five sets of different width hot melt adhesive coating lines (1480mm,1380mm,1280mm, 1000mm, 620mm), with an annual output of 12 million meters. Four sets of full numerically controlled infrared automatic edge trimming and slitting machines, one set of numerical control cutting machines, and one set of high-speed anti-crease special composite units. It integrates granulation, film formation, slitting and compounding.
Company specializes in the production and sales of TPU, PA, PES, PP, PE, Polyolefins, EVA and EAA hot melt adhesive film, hot melt adhesive granules and hot melt adhesive powder. These products are widely used in clothing,embroidery,shoes,luggage,toys,caps,sporting goods, electronics, precision instruments, aviation, and automobiles.
Our company has passed ISO9001:2015 quality management system certification, and all products in our company are up to RoHS,REACH, Oeko-tex, California Proposition 65, Halogen Test Report, PFOA, PFOS, PAHS, HBCDD and other environmental standards.
TPU Hot Melt Adhesive Film Packing and Delivery
1PC/PE FILM, 100yard/roll, 2~4roll/CTN, or it's up on the customer's option.
Shipped in 3-5 days after payment
FAQ
Q1) . How about your conventional package and the MOQ of your adhesive powder?
We have 1kg,2kg,5kg and 20kg per bag,MOQ is 20kg.
Q2) . What type of hot melt adhesive powder do you have?
We have PA, TPU, EVA and PES hot melt adhesive powder.We can accord your application to give your suitable type.
Q3). What is your Particle size ?
0-80um, 80-200um , 150um-250um ,200um-400um
Q4). Do you provide free sample? And how many days it will take?
Yes, we can provide 0.3kg free sample, only need you to pay the shipping cost. We will make the sample within 1- 2working days
and it will take 3-7days on the transportation.
Q5). What is your lead time ?
2-7 days , depending on the quantity
we almost have safe stock
Q6). How do I pay for my order?
We accept T/T and Paypal
