Product Details
Place of Origin: China
Brand Name: Tunsing
Certification: RoHs, REACH
Model Number: DS019100R
Payment & Shipping Terms
Minimum Order Quantity: 200Y
Price: USD 0.3-1.5 per yard
Packaging Details: 2 rolls per carton
Delivery Time: Shipped in 3-5 days after receive payment
Payment Terms: T/T
Supply Ability: USD 3000 thousand meter per year
Keywords: |
Hot Melt Adhesive Film |
Color: |
Transparent |
Density: |
0.96±0.02g/cm³ |
Melting Point: |
90℃ |
Operating Temperature: |
130℃-160℃ |
Melt Flow Index: |
100±10g/10min ; Condition:ASTMD1238-04 |
Washing Resistant Time: |
40°C/72H |
Keywords: |
Hot Melt Adhesive Film |
Color: |
Transparent |
Density: |
0.96±0.02g/cm³ |
Melting Point: |
90℃ |
Operating Temperature: |
130℃-160℃ |
Melt Flow Index: |
100±10g/10min ; Condition:ASTMD1238-04 |
Washing Resistant Time: |
40°C/72H |

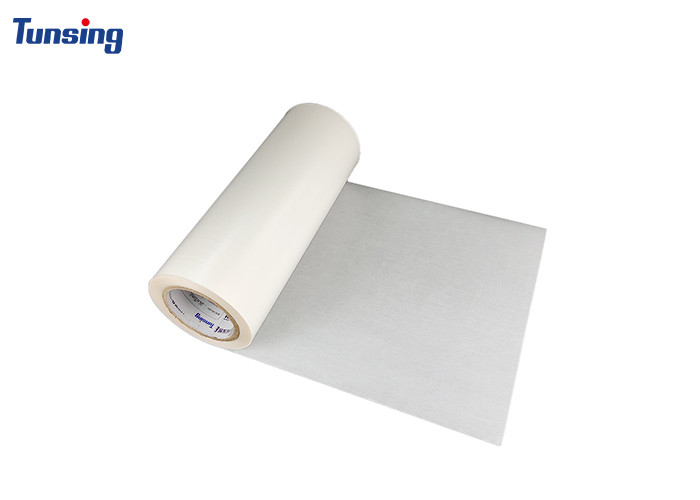

EAA DS019100R Hot Melt Adhesive Film for Embroidery Patch
Hot Melt Adhesive Film Product: DS019100R
Hot Melt Adhesive Film Description:
This product is a thermoplastic adhesive product , suitable for wide range of adherend . It can be repeatedly heated for bonding. It performs an excellent adhesion for fabrics, textiles, cotton etc. This adhesive product possesses excellent washability and with good dry cleaning and chemical additives resistant
Hot Melt Adhesive Film Composition:
Ethylene acrylic acid copolymer
Hot Melt Adhesive Film Physical Characteristics:
Color | transparent | Release liner | Glassine release paper |
Density | 0.96±0.02g/cm³ | Conventional Thickness | 0.05mm ,0.08mm, 0.1mm, 0.12mm,0.15mm,0.18mm |
Melting point | 90℃ | Width | 5mm-1480mm |
Operating Temperature | 130℃-160℃ | Conventional Width | 480mm,1000mm,1380mm,1480mm |
Melt Flow Index | 100±10g/10min ; | Length | 100 yards |
Washing Resistant Time | 40°C/72H | Finished Products Specification | 500mm(width)*100yards(length)/roll |
Hot Melt Adhesive Film Recommended Bonding Conditions:
Flat Press | Second Flat Press |
Machine Setting: 120℃-140℃ | Machine Setting: 130℃-160℃ |
Dwell Time: 5-15 seconds | Dwell Time: 8-25seconds |
Pressure: 0.3-0.6mpa | Pressure: 0.3-0.6mpa |
Hot Melt Adhesive Film Applications:
Development direction and application of DS019100R is for adhesion in garments accessories, footwear, handbags, luggage, embroidery, hot fix, iron logo and crafts .
Hot Melt Adhesive Film Packaging & Shipping
Deliver date: 2-5days after confirmed the samples and received the payment
Package:1PC/PE FILM, 100yard/roll, 2~4roll/CTN, or it's up on the customer's option.
Hot Melt Adhesive Film Customer feedback
FAQ
1, Q: How will you pack the product?
A: We pack with paper cartons, usually 4 or 6 rolls per carton for hand stretch film; 1 roll for machine stretch film; 56 or 84 rolls for mini stretch film and 27 rolls per pallet for jumbo stretch film.
2, Q: How many rolls can be full fitted into one container, such as 20FT, 40FT?
A: The details are in the above forms. If your specification is different, you need to tell us the size of the carton, and then we will calculate for you accordingly.
3, Q: How about the adhesive of the stretch film?
A: It is self adhesive stretch film. We can produce one side and two sides adhesive but usually one side adhesive. Besides, the stickiness can be controlled as customized.
4, Q: How many layers of the stretch film can your equipment make?
A: Our equipment can produce 1/2/3 layers stretch film.
5, Q: Do you accept OEM?
A: Yes, we do.
