Home > products > Hot Melt Adhesive Film > Transparent Embroidery EAA Hot Melt Adhesive Film For Fabric

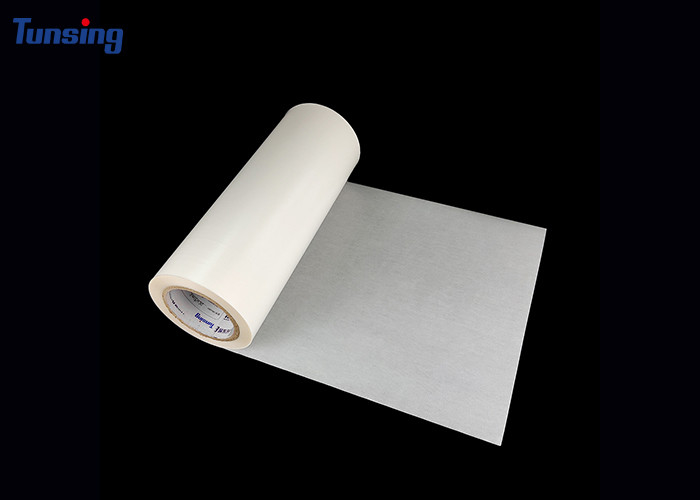

Transparent Embroidery EAA Hot Melt Adhesive Film For Fabric

Product Details

Place of Origin: China

Brand Name: Tunsing

Certification: ISO,Rohs,Reach

Model Number: DS019100R

Payment & Shipping Terms

Minimum Order Quantity: 2 rolls

Price: negotiate

Packaging Details: 100Y/roll , 2rolls/ctn

Delivery Time: 5-8 work day

Payment Terms: D/A, T/T,Western Union, PayPal, L/C

Supply Ability: 400000Yard/Month

Get Best Price
Highlight:

100yards Self Adhesive Transparent Film

,

EAA Self Adhesive Transparent Film

,

EAA Translucent Adhesive Film

Color:
Transparent
Proportion:
0.98±0.02g/cm³
Melting Range:
80-110℃ (Tunsing DSC 214)
Liquidity Index:
60-95g/10min (ASTM D1238-04)
Activation Temperature:
123-160℃
Washing Resistance:
40℃
Release Protection:
Glassine Release Paper
Conventional Width:
500mm,1000mm,1280,1480mm
Conventional Length:
100 Yards
Color:
Transparent
Proportion:
0.98±0.02g/cm³
Melting Range:
80-110℃ (Tunsing DSC 214)
Liquidity Index:
60-95g/10min (ASTM D1238-04)
Activation Temperature:
123-160℃
Washing Resistance:
40℃
Release Protection:
Glassine Release Paper
Conventional Width:
500mm,1000mm,1280,1480mm
Conventional Length:
100 Yards
Transparent Embroidery EAA Hot Melt Adhesive Film For Fabric

Transparent Embroidery EAA Hot Melt Adhesive Film For Fabric



Quick detail:

This product is a thermoplastic hot-melt adhesive film, which is entrusted to release paper and can be repeatedly heated and plasticized for bonding. This hot melt adhesive has excellent adhesion to textiles and aluminum.



Physical Characteristics:

Color

Transparent

Release Protection

Glassine Release Paper

Proportion

0.98±0.02g/cm³

Conventional Thickness

0.05mm,0.08mm,0.1mm,0.12mm,0.15mm,0.18mm

Melting Range

80-110℃  (Tunsing DSC 214)

Width Range

5mm-1480mm

Liquidity Index

60-95g/10min (ASTM D1238-04)

Conventional Width

500mm,1000mm,1280,1480mm

Activation Temperature

123-160℃     (Tunsing)

Conventional Length

100 yards

Washing Resistance

40℃

Finished Product

500mm*100yards/roll



 Transparent Embroidery EAA Hot Melt Adhesive Film For Fabric 0



Recommended Bonding Conditions:



First Lamination Second Implanting
Mechanical Mold Temperature 140℃-180℃ Mechanical Mold Temperature 150℃-190℃
Hot Pressing Time 5-15 seconds Hot Pressing Time 8-25 seconds
Pressure 0.3-0.6mpa Pressure 0.3-0.6mpa

'
Transparent Embroidery EAA Hot Melt Adhesive Film For Fabric 1



Application :

DS019100R is used in clothing, embroidery, footwear, luggage, handbags, toys, hats, sports goods, etc.



NOTICE:
1, Bonding temperature and pressure as well as the time involved in the strength of the film to material. Bonding temperature must be close to the machine set the temperature, the pressure must be uniform, mold and pressure roller must be flat.
2, In different machinery and materials, the bonding conditions used will be different. The conditions marked here are only basic. The optimum bonding conditions should be made by creating suitable construction conditions for the particular application damage, direct or consequential, arising out of the use, misuse or inability to use the product.





The advantages of using hot melt adhesive film
1. Clean;
2. Eco-friendly;
3. High efficiency. The fast bonding speed could make the process done in several seconds.
4. Safety. This product is non-solvent and it could not make any hidden trouble in production;
5. Hot melt adhesive film has good fastness performance than other glue which could be widely used to laminate many materials;
6. Automatic production can be realized.
7. Portable and easily operated.
8. Reusable. The hot melt adhesive film used for the first time can be heated up and spun off for the second time usage by heating and melting again.
9. Functional features. The hot melt adhesive is good at dry cleaning, washable, low-temperature resistance, high-temperature resistance and other kinds of good features;
10. Can be used as both adhesives and sealants;



Packing & Shipping:
Packing: 100 yard in roll, 2 rolls in case
Shipping: 5-7days by Express (DHL, FedEx, USP and so on)

Transparent Embroidery EAA Hot Melt Adhesive Film For Fabric 2





Why Choose Us
1, more than 10 years experience in production.
2, well-known products: Sichuan Famous Brand.
3, Good quality control in production process: Quality Service AAA Grade Credit Enterprise
4, Excellent quality and Competitive price, OEM is available.
5, Stable supply: an extensive range of stock.
6, The whole process from material to end products is under supervision.

FAQ :
1. How about hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your demands ,then recommend you right products to you.
2. Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years experience. able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us know.
3. How do you transport the products?
If you are not urgent, we usually transport by ship because it is the cheapest way. But for the West Asia area,
we deliver by train because there is no sea to ship. And for samples and urgent cargo, we transport it by air as it is the fastest way .Of course if you have other better idea about transport, we will accept it.
4. May I have your samples?
If you need some sample for reference, please let us know your fully address/ship
mode with courier ,and we will arrange sample for your reference.
5. How long is the lead time?
Sample lead time:3-7 days
Bulk lead time:7-10 days(depends on order quantity)
6. How do I pay for my order?
We accept L/C ,T/T ,Western Union , Paypal , Escrow
