Product Details
Place of Origin: China
Brand Name: TUNSING
Certification: RoHs, REACH,
Model Number: DS002-2
Payment & Shipping Terms
Minimum Order Quantity: 100 yards
Price: USD 0.4-0.7per yard
Packaging Details: 1 roll in per carton, 100 yards in one roll
Delivery Time: shipped in 3-5days after payment
Payment Terms: T/T
Supply Ability: 3000yards per day
Keywords: |
Hot Melt Adhesive FIlm |
Colour: |
Light Blue Transparent |
Melt Point: |
100-125℃ |
Activation Temperature: |
125-150℃ |
Liquidity Index: |
45±17g/10min |
Release Protection: |
Glassine Release Paper |
Finished Product: |
500mm*100yards/roll |
Pressure: |
0.3-0.6mpa |
Keywords: |
Hot Melt Adhesive FIlm |
Colour: |
Light Blue Transparent |
Melt Point: |
100-125℃ |
Activation Temperature: |
125-150℃ |
Liquidity Index: |
45±17g/10min |
Release Protection: |
Glassine Release Paper |
Finished Product: |
500mm*100yards/roll |
Pressure: |
0.3-0.6mpa |

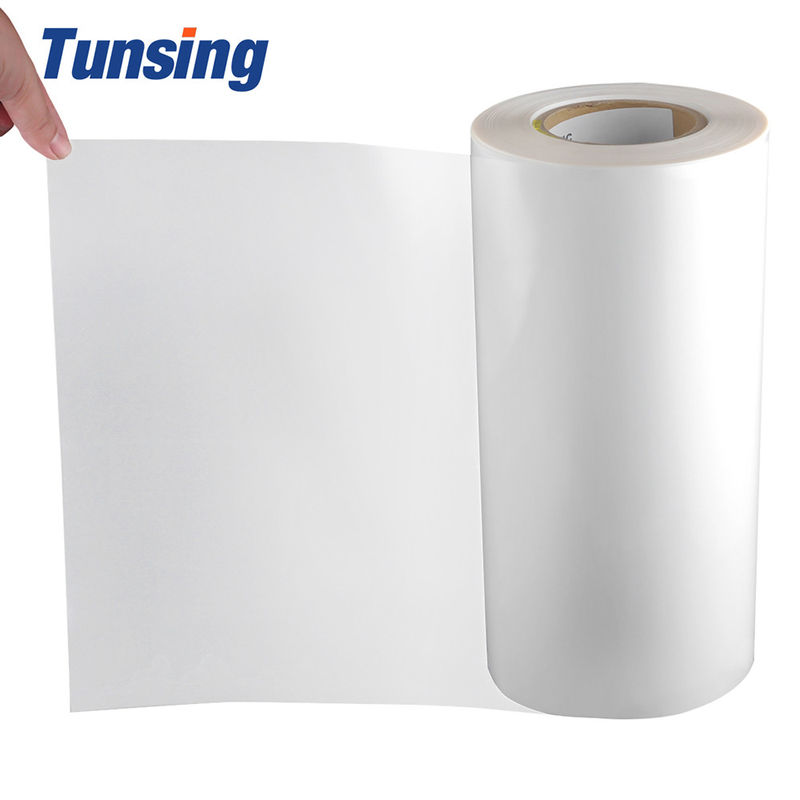

90℃ Washing Resistance Polyamide PA Hot Melt Adhesive Film for Patch
Hot Melt Adhesive Film Description
This product is a thermoplastic hot-melt adhesive film, which is supported by release paper and can be repeatedly heated and plasticized.This hot melt adhesive has excellent adhesion to textiles(cotton,nylon,chemical fiber, blended fabric).This product has dry cleaning and 90℃ washing resistance.
Hot Melt Adhesive Film Technical Parameters:
|
Color |
Light Blue Transparent |
Release Protection |
Glassine Release Paper |
|
Proportion |
1.15±0.02g/cm³ |
Conventional Thickness |
0.05mm,0.08mm,0.1mm,0.12mm,0.15mm,0.18mm |
|
Melting Range |
100-125℃ (Tunsing DSC 214) |
Width Range |
5mm-1480mm |
|
Liquidity Index |
45±17g/10min (ASTM D1238-04) |
Conventional Width |
500mm,1000mm,1280mm,1480mm |
|
Activation Temperature |
125-150℃ (Tunsing) |
Finished Product |
500mm*100yards/roll |
Hot Melt Adhesive Film Technical Parameters:
|
First Lamination |
Second Implanting |
||
|
Mechanical Mold Temperature |
150℃-170℃ |
Mechanical Mold Temperature |
150℃-170℃ |
|
Time |
5-15 seconds |
Packing Time |
8-25 seconds |
|
Pressure |
0.3-0.6mpa |
Pressure |
0.3-0.6mpa |
Hot Melt Adhesive Film Application
