Product Details
Place of Origin: China, Shenzhen
Brand Name: TUNSING
Certification: RoHs, REACH,
Model Number: DS8614
Payment & Shipping Terms
Minimum Order Quantity: 100 yards
Price: USD 0.5-0.8per yard
Packaging Details: 1 roll in per carton, 100 yards in one roll
Delivery Time: shipped in 3-5days after payment
Payment Terms: T/T
Supply Ability: 3000kg per day
Keywords: |
Hot Melt Adhesive FIlm |
Colour: |
Foggy Translucent |
Melt Point: |
100-125℃ |
Activation Temperature: |
110-145℃ |
Proportion: |
1.18±0.02g/cm³ |
Liquidity Index: |
45±17g/10min |
Washing Resistant: |
40℃ |
Hardness: |
84±3（Shore A） |
Keywords: |
Hot Melt Adhesive FIlm |
Colour: |
Foggy Translucent |
Melt Point: |
100-125℃ |
Activation Temperature: |
110-145℃ |
Proportion: |
1.18±0.02g/cm³ |
Liquidity Index: |
45±17g/10min |
Washing Resistant: |
40℃ |
Hardness: |
84±3（Shore A） |

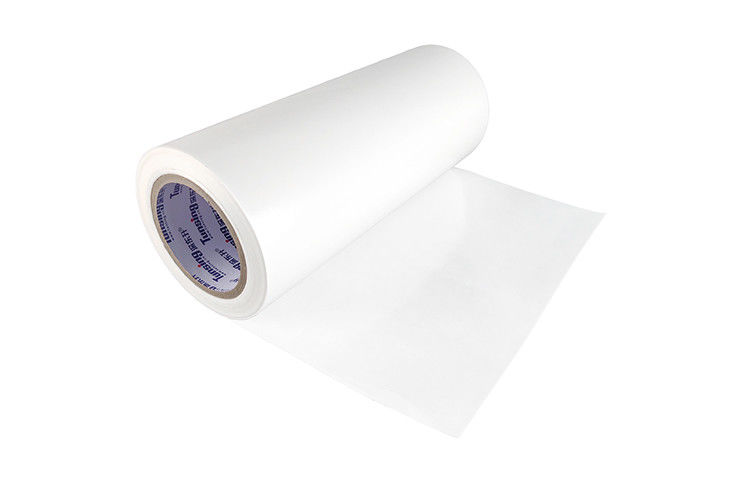

84±3 ShoreA Polyurethane Hot Melt Adhesive Film for PU＋Leather
Hot Melt Adhesive Film Description
This product is a thermoplastic hot-melt adhesive film, which is supported by release paper and can be repeatedly heated and plasticized. This hot melt adhesive has excellent adhesion to textiles, TPU, PVC, PC, ABS, and has excellent cold resistance.
Hot Melt Adhesive Film Technical Parameters:
Color | Foggy translucent | Release Protection | Glassine Release Paper |
Proportion | 1.18±0.02g/cm³ | Thickness | 0.0125mm-0.15mm |
Curing Time | 8min | Width | 5mm-1480mm |
Melt Flow Index | 12±5g/10mins (ASTM D1238-04) | Conventional Thickness | 0.03mm,0.05mm,0.08mm,0.10mm |
Hardness | 84±3 (Shore A) | Conventional Width | 1380mm |
Melting Range | 100-125℃ (Tunsing Melting point instrument) | Conventional Length | 100 yards |
Activation Temperature | 110-145℃ (Tunsing) | Finished Product | 1380mm*100yards/roll |
Hot Melt Adhesive Film Technical Parameters:
First Lamination | Second Implanting | ||
Mechanical Mold Temperature | 130℃-150℃ | Mechanical Mold Temperature | 130℃-170℃ |
Time | 5-15 seconds | Time | 8-25 seconds |
Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |
