Home > products > Hot Melt Adhesive Film > PA Polyamide Hot Melt Adhesive Film Ketone Solvents Insoluble 0.055mm Thickness

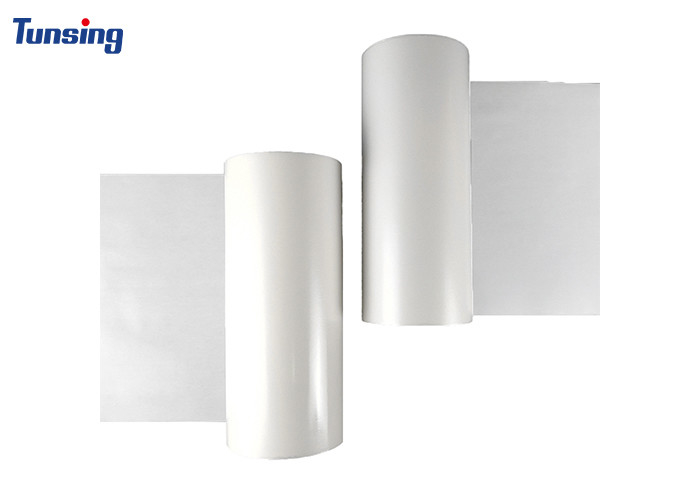

PA Polyamide Hot Melt Adhesive Film Ketone Solvents Insoluble 0.055mm Thickness

Product Details

Place of Origin: China

Brand Name: TUNSING

Certification: California Proposition 65,Oeko-tex

Model Number: DS0022

Payment & Shipping Terms

Minimum Order Quantity: 200M

Price: negotiable

Packaging Details: 620mm*200m/roll

Delivery Time: 3-7 days

Payment Terms: L/C, T/T,

Supply Ability: 400000 yards per month

Get Best Price
Highlight:

PA Polyamide Hot Melt Adhesive Film

,

0.055mm Hot Melt Adhesive Film

,

hot melt polyamide film

Composition:
Copolyamide
Conventional Thickness:
0.055mm
Width:
5mm-620mm
Conventional Width:
620mm
Melting Range:
90-120℃ (Tunsing DSC 214)
Liquidity Index:
20±10g/10min (ASTM D1238-04)
Composition:
Copolyamide
Conventional Thickness:
0.055mm
Width:
5mm-620mm
Conventional Width:
620mm
Melting Range:
90-120℃ (Tunsing DSC 214)
Liquidity Index:
20±10g/10min (ASTM D1238-04)
PA Polyamide Hot Melt Adhesive Film Ketone Solvents Insoluble 0.055mm Thickness

Quick detail of polyamide hot melt adhesive:

Polyamide hot melt adhesive is a thermoplastic film modified hot melt adhesive, entrusted to the release of paper, can be repeatedly heated plasticizing bonding.This kind of hot melt adhesive has a wide range of adhesive properties, including textile fabrics (cotton, nylon, polyester, acrylic, acrylic), thermosetting materials (epoxy resin, phenolic resin), PVC, ABS, PC, PI, PU, metal, leather, glass fiber and composite materials.Moreover, it has broad activation temperature and moisture resistance, and is insoluble in ketone solvents.


Specification of polyamide hot melt adhesive:

Physical Characteristics:

Colour Light Yellow
Proportion 1.2±0.02g/cm³
Melting Range 90-120℃ (Tunsing DSC 214)
Liquidity Index 20±10g/10min (ASTM D1238-04)
Activation Temperature 110-170℃ (Tunsing)
Release Protection Glassine Release Paper
Conventional Thickness 0.055mm
Width 5mm-620mm
Conventional Width 620MM
Conventional Width 620mm*200M /roll



Recommended Bonding Conditions:

First Lamination: Second Implanting:
Mechanical Mold Temperature 130℃-190℃ Mechanical Mold Temperature 130℃-190℃
Hot Pressing Time 5-15 seconds Hot Pressing Time 8-25 seconds
Pressure 0.3-0.6mpa Pressure 0.3-0.6mpa



Application of polyamide hot melt adhesive:

Polyamide hot melt adhesive is applied in 3C electronics, 5G, automobile, precision instrument, medical treatment, luggage and sports goods.

PA Polyamide Hot Melt Adhesive Film Ketone Solvents Insoluble 0.055mm Thickness 0



Packing:
PA Polyamide Hot Melt Adhesive Film Ketone Solvents Insoluble 0.055mm Thickness 1


FAQ:
1. who are we?
We are based in Guangdong, China, start from 2007,sell to Domestic Market(50.00%),South America(12.00%),South Asia(12.00%),North America(6.00%),Southeast Asia(5.00%),Africa(5.00%),Western Europe(2.00%),Southern Europe(2.00%),Eastern Europe(00.00%),Oceania(00.00%),Mid East(00.00%),Eastern Asia(00.00%),Central America(00.00%),Northern Europe(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Hot Melt Adhesive Film,Hot Melt Adhesive Powder,Hot Melt Adhesive Web Film,Hot Melt Adhesive Granule,Heat Seam Sealing Tape.

4. why should you buy from us not from other suppliers?

1. ISO9001,ROHS,REACH & Oeko-Tex Standard 100 certification;

2. More than fourteen years experience;

3. Strict quality control;

4. ERP system;
