Product Details
Place of Origin: China, Shenzhen
Brand Name: TUNSING
Certification: RoHs, REACH,
Model Number: DS3412
Payment & Shipping Terms
Minimum Order Quantity: 100 yards
Price: USD 1.7-2.3per yard
Packaging Details: 1 roll in per carton, 100 yards in one roll
Delivery Time: shipped in 3-5days after payment
Payment Terms: T/T
Supply Ability: 3000kg per day
Keywords: |
Hot Melt Adhesive FIlm |
Colour: |
Transparent |
Rheological Temperature: |
102-125℃ |
Opening Time: |
12min |
Proportion: |
1.14±0.02g/cm³ |
Liquidity Index: |
45±17g/10min |
Washing Resistant: |
40℃ |
Hardness: |
52±2 (Shore A) |
Keywords: |
Hot Melt Adhesive FIlm |
Colour: |
Transparent |
Rheological Temperature: |
102-125℃ |
Opening Time: |
12min |
Proportion: |
1.14±0.02g/cm³ |
Liquidity Index: |
45±17g/10min |
Washing Resistant: |
40℃ |
Hardness: |
52±2 (Shore A) |

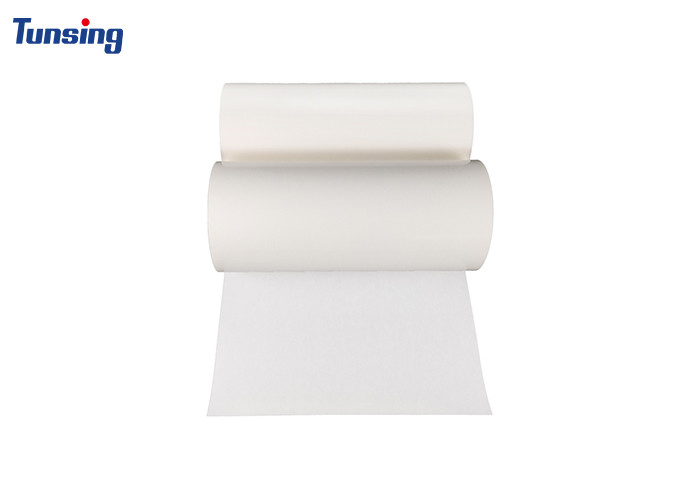

52±2 ShoreA Polyurethane TPU Hot Melt Adhesive Film for Seamless Underwear
TPU Hot Melt Adhesive Film Description
1. DS3412 is a thermoplastic hot-melt adhesive film, which is entrusted to release paper and can be repeatedly heated and plasticized.
2. This hot-melt adhesive adheres to the soft touch of Lycra, spandex, nylon, Jiaji and other super-elastic fabrics. Its characteristics are: very soft feel, super high resilience.
TPU Hot Melt Adhesive Film Technical Parameters:
Color |
Transparent |
Release Protection |
Glassine Release Paper |
Proportion |
1.14±0.02g/cm³ |
Thickness |
0.0125mm-0.10mm |
Opening Time |
12min |
Width |
5mm-1500mm |
Liquidity Index |
6±3g/10mins (ASTM D1238-04) |
Conventional Thickness |
0.05mm |
Hardness |
52±2 (Shore A) |
Conventional Length |
100 m |
Rheological temperature |
102-125℃ |
Finished Product |
1500mm*100 m/roll |
TPU Hot Melt Adhesive Film Technical Parameters:
First Lamination |
Second Implanting |
||
Mechanical Mold Temperature |
145℃-165℃ |
Mechanical Mold Temperature |
155℃-185℃ |
Time |
5-15 seconds |
Time |
20-30 seconds |
Pressure |
0.3-0.6mpa |
Pressure |
0.3-0.6mpa |
Why Choose Us
1. We are environmentally friendly adhesive enterprises to ensure the environmental performance of raw materials.
2. Own factory, efficient technical equipment, a number of production lines.
3. Professional R & D team, set production, research and development, sales as one of the new enterprises.
TPU Hot Melt Adhesive Film Application
DS3412 is widely used to glue Embroidery Patches/Badges, Woven Labels to Fabrics; the permanent bonding of Textile Fabrics; the permanent bonding of Metals Materials, such as Aluminum Plates, Metal Plates and Stainess Steel Plates.
TPU Hot Melt Adhesive Film Package
It can ship by FedEX. It will need 5-7 days at usual. Also can by sea and air.
3-5yards free sample for you to testing, you just pay to the shipping fee.
Q1).Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don't hesitate to let us know,
