Product Details
Place of Origin: China, Shenzhen
Brand Name: TUNSING
Certification: RoHs, REACH,
Model Number: DS019300M
Payment & Shipping Terms
Minimum Order Quantity: 100 yards
Price: USD 0.2-0.4per yard
Packaging Details: 1 roll in per carton, 100 yards in one roll
Delivery Time: shipped in 3-5days after payment
Payment Terms: T/T
Supply Ability: 3000kg per day
Melt Point: |
70℃-95℃ |
Melt Index: |
300g±30g/10min |
Activation Temperature: |
100℃-130℃ |
Pressure: |
0.3mpa-0.6mpa |
First Lamination Mechanical Mold Temperature: |
120℃-140℃ |
Second Lamination Mechanical Mold Temperature: |
120℃-150℃ |
Melt Point: |
70℃-95℃ |
Melt Index: |
300g±30g/10min |
Activation Temperature: |
100℃-130℃ |
Pressure: |
0.3mpa-0.6mpa |
First Lamination Mechanical Mold Temperature: |
120℃-140℃ |
Second Lamination Mechanical Mold Temperature: |
120℃-150℃ |

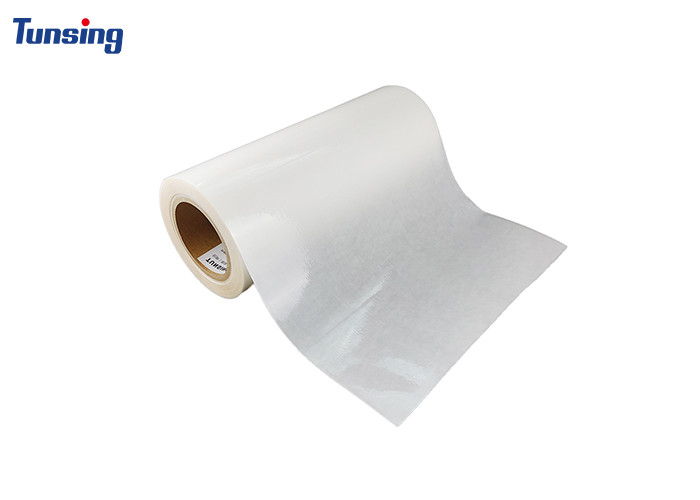

Ethylene-Vinyl Acetate Copolymer EAA Hot Melt Adhesive Film For Aluminum
EAA Hot Melt Adhesive Film Description
This product is a thermoplastic hot-melt adhesive film, which is entrusted to release paper and can be repeatedly heated and plasticized for bonding. This hot melt adhesive has excellent adhesion to textiles and aluminum.
EAA Hot Melt Adhesive Film Technical Parameters:
Color |
Transparent |
Release Protection |
Glassine Release Paper |
Proportion |
0.958±0.02g/cm³ |
Conventional Thickness |
0.05mm,0.08mm,0.1mm,0.12mm,0.15mm,0.18mm |
Melting Range |
70-95℃(Tunsing DSC 214) |
Width Range |
5mm-1480mm |
Liquidity Index |
300±30g/10min (ASTM D1238-04) |
Conventional Width |
500mm,1000mm,1280mm,1480mm |
Activation Temperature |
100-130℃ (Tunsing) |
Conventional Length |
100 yards |
Washing Resistance |
40℃ |
Finished Product |
500mm*100yards/roll |
EAA Hot Melt Adhesive Film Technical Parameters:
First Lamination |
Second Implanting |
||
Mechanical Mold Temperature |
120℃-140℃ |
Mechanical Mold Temperature |
120℃-150℃ |
Hot Pressing Time |
5-15 seconds |
Hot Pressing Time |
8-25 seconds |
Pressure |
0.3-0.6mpa |
Pressure |
0.3-0.6mpa |
OUR ADVANTAGES
1. Quality Assurance
R&D Group and Experienced engineer To
provide top quality products
2. Competitive price
low price but High quality
3. Low Moq
small number of MOQ
4. Professional Team
Provide you with Efficient Service
5. Timely delivery
Delivery on time
Storage conditions
1.The temperature is 20-30"C, the humidity is 45- 55%, there is no ultraviolet light, and it is protected fromlight (light protection includes light and natural light) to avoid long-term contact with the air.
2. If the material is stored in the whole roll, the stacking strength should not be too large, and the stacking height should be moderate.
3. If you don't need to cut pieces, you can keep the original packaging. If cutting pieces cannot be avoided, the excess materials should be sold out within 1 day without good packaging.
EAA Hot Melt Adhesive Film Application
DS019300M is used in clothing, embroidery, footwear,luggage, handbags, toys, hats, sports goods, etc.
Customer feedback
Hot Melt Adhesive Film Package
It can ship by FedEX. It will need 5-7 days at usual. Also can by sea and air.
3-5yards free sample for you to testing, you just pay to the shipping fee.
FQA
Q1). Do you provide free sample? And how many days it will take?
Yes, of course.we provide free 3-5Y sample for your testing only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation., then you will have more confidence in our product quality and service,
Q2). How long is the lead time?
Sample lead time: 1-3 days Bulk lead time: 7-20days(depends on order quantity),
Q3). How do I pay for my order?
We usually accept L/C ,T/T ,Western Union , Paypal.
