Product Details
Place of Origin: China
Brand Name: TUNSING
Certification: RoHs, REACH,
Model Number: DS002
Payment & Shipping Terms
Minimum Order Quantity: 100 yards
Price: USD 0.4-0.7per yard
Packaging Details: 1 roll in per carton, 100 yards in one roll
Delivery Time: shipped in 3-5days after payment
Payment Terms: T/T
Supply Ability: 7000kg per day
Keywords: |
Copolyamide Hotmelt Film |
Melt Point: |
90-125degree |
Proportion: |
1.15±0.02gram/cm³ |
Liquidity Index: |
45±25gram/10min |
Washing Resistant: |
40Degree |
Pressure: |
0.3mpa-0.6mpa |
Keywords: |
Copolyamide Hotmelt Film |
Melt Point: |
90-125degree |
Proportion: |
1.15±0.02gram/cm³ |
Liquidity Index: |
45±25gram/10min |
Washing Resistant: |
40Degree |
Pressure: |
0.3mpa-0.6mpa |

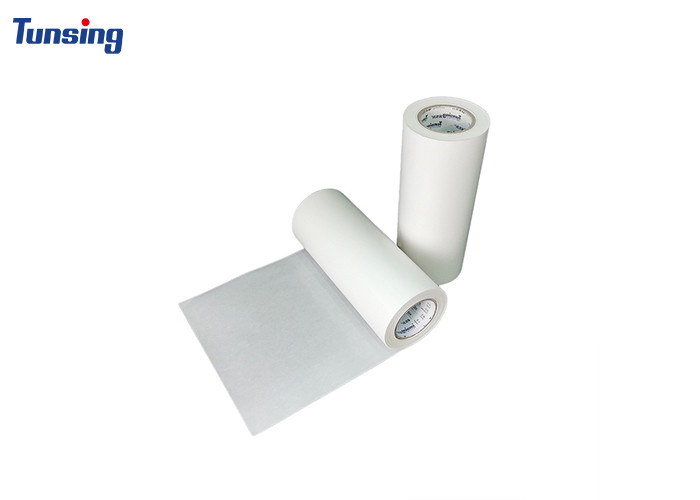

Washing Resistant 40 Degree Copolyamide Hotmelt Film For Textile Fabric
Copolyamide Hotmelt Film Description
This product is a thermoplastic hot-melt adhesive film, which is supported by release paper and can be repeatedly heated and plasticized.This hot melt adhesive has excellent adhesion to textiles(cotton,nylon,chemical fiber, blended fabric).This product has dry cleaning and 40 ℃ washing resistance.
Copolyamide Hotmelt Film Technical Parameters:
|
Color |
Light Blue Transparent |
Release Protection |
Glassine Release Paper |
|
Proportion |
1.15±0.02g/cm³ |
Conventional Thickness |
0.05mm,0.08mm,0.1mm,0.12mm,0.15mm,0.18mm |
|
Melting Range |
90-125℃ (Tunsing DSC 214) |
Width Range |
5mm-1480mm |
|
Liquidity Index |
45±25g/10min (ASTM D1238-04) |
Conventional Width |
500mm,1000mm,1280mm,1480mm |
|
Activation Temperature |
95-145℃ (Tunsing) |
Finished Product |
500mm*100yards/roll |
Copolyamide Hotmelt Film Technical Parameters:
|
First Lamination |
Second Implanting |
||
|
Mechanical Mold Temperature |
110℃-160℃ |
Mechanical Mold Temperature |
130℃-170℃ |
|
Time |
5-15 seconds |
Packing Time |
8-25 seconds |
|
Pressure |
0.3-0.6mpa |
Pressure |
0.3-0.6mpa |
The advantages by using Copolyamide Hotmelt Film as follows:
1. Clean;
2. Eco-friendly;
3. High efficiency. The fast bonding speed could make the process done in several seconds.
4. Safety. This product is non-solvent and it could not make any hidden trouble in production;
5. Hot melt adhesive film has good fastness performance than other glue which could be widely used to laminate many materials;
6. Automatic production can be realized.
7. Portable and easily operated.
8. Reusable. The hot melt adhesive film used for the first time can be heated up and spun off for the second time usage by heating and melting again.
9. Functional features. The hot melt adhesive is good at dry cleaning, washable, low-temperature resistance, high-temperature resistance and other kinds of good features;
10. Can be used as both adhesives and sealants;
Copolyamide Hotmelt Film Application
Copolyamide Hotmelt Film Customer feedback
FQA
Q1). Do you provide free sample? And how many days it will take?
Yes, we can provide 0.3-0.5kg free sample, only need you to pay the shipping cost.
We will make the sample within 1- 2 working
days and it will take 3-7days on the transportation.
Q2). What is your lead time ?
2-7 days , depending on the quantity , we almost have safe stock ,
Q3). How do I pay for my order?
We accept T/T , Paypal and alibaba trade assurance order.
