Product Details
Place of Origin: China, Shenzhen
Brand Name: TUNSING
Certification: RoHs, REACH,
Model Number: DS8614
Payment & Shipping Terms
Minimum Order Quantity: 100 yards
Price: USD 0.5-0.8per yard
Packaging Details: 1 roll in per carton, 100 yards in one roll
Delivery Time: shipped in 3-5days after payment
Payment Terms: T/T
Supply Ability: 3000kg per day
Keywords: |
TPU Hot Melt Adhesive Film Roll |
Colour: |
Foggy Translucent |
Melt Point: |
100℃-125℃ |
Activation Temperature: |
110℃-145℃ |
Proportion: |
1.18±0.02gram/cm³ |
Liquidity Index: |
45±17gram/10min |
Washing Resistant: |
40℃ |
Hardness: |
84±3（Shore A） |
Keywords: |
TPU Hot Melt Adhesive Film Roll |
Colour: |
Foggy Translucent |
Melt Point: |
100℃-125℃ |
Activation Temperature: |
110℃-145℃ |
Proportion: |
1.18±0.02gram/cm³ |
Liquidity Index: |
45±17gram/10min |
Washing Resistant: |
40℃ |
Hardness: |
84±3（Shore A） |

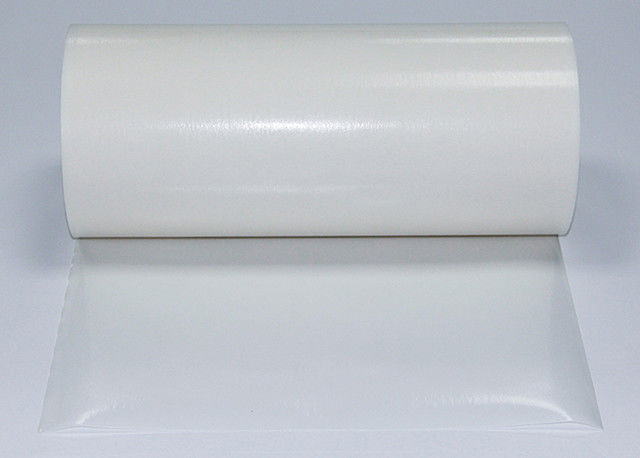

Polyurethane TPU Hot Melt Adhesive Film Roll for Bonding Leather
Hot Melt Adhesive Film Roll Description
This product is a thermoplastic hot-melt adhesive film, which is supported by release paper and can be repeatedly heated and plasticized. This hot melt adhesive has excellent adhesion to textiles, TPU, PVC, PC, ABS, and has excellent cold resistance.
Hot Melt Adhesive Film Roll Technical Parameters:
|
Color |
Foggy translucent |
Release Protection |
Glassine Release Paper |
|
Proportion |
1.18±0.02g/cm³ |
Thickness |
0.0125mm-0.15mm |
|
Curing Time |
8min |
Width |
5mm-1480mm |
|
Melt Flow Index |
12±5g/10mins (ASTM D1238-04) |
Conventional Thickness |
0.03mm,0.05mm,0.08mm,0.10mm |
|
Hardness |
84±3 (Shore A) |
Conventional Width |
1380mm |
|
Melting Range |
100-125℃ (Tunsing Melting point instrument) |
Conventional Length |
100 yards |
|
Activation Temperature |
110-145℃ (Tunsing) |
Finished Product |
1380mm*100yards/roll |
Hot Melt Adhesive Film Roll Technical Parameters:
|
First Lamination |
Second Implanting |
||
|
Mechanical Mold Temperature |
130℃-150℃ |
Mechanical Mold Temperature |
130℃-170℃ |
|
Time |
5-15 seconds |
Time |
8-25 seconds |
|
Pressure |
0.3-0.6mpa |
Pressure |
0.3-0.6mpa |
Characteristics
Tpu hot melt adhesive powder
1. Soft and good elasticity
2. Good viscous
3. Good fastness after washing, good solution resistance
PES hot melt adhesive powder
1. Use to bond single layer or multe layers
2. Good elasticity
3. Good fastness after washing or dey clean
PA hot melt adhesive powder
1. Easy to peeling
2. Good fastness after washing suitable forwashing at moer than 60 degrees ,
3. good Enzyme wash resistance
Why Choose Us
1. We are environmentally friendly adhesive enterprises to ensure the environmental performance of raw materials
2. Own factory, efficient technical equipment, a number of production lines
3. Professional R & D team, set production, research and development, sales as one of the new enterprises
4. Service thoughtful, short delivery cycle
Hot Melt Adhesive Film Roll Application
DS8614 is used in the bonding of clothing, embroidery, footwear, luggage, handbags, toys, hats, sports materials.
Hot Melt Adhesive Film Roll Customer feedback
FAQ
Q1) . How about your MOQ of your adhesive powder?
MOQ is 20 KG/25KG ( per bag)
Q2) . What type of hot melt adhesive powder do you have?
We have PA, TPU, EVA and PES hot melt adhesive powder.
We can accord your application to give your suitable type.
Q3). What is your Particle size ?
0-80um, 80-170um , 150um-250um ,200um-400um
Q4). Do you provide free sample? And how many days it will take?
Yes, we can provide 0.3-0.5kg free sample, only need you to pay the shipping cost.
We will make the sample within 1- 2 working
days and it will take 3-7days on the transportation.
