Product Details
Place of Origin: China Shenzhen
Brand Name: TUNSING
Certification: REACH,RoHS
Model Number: DS617
Payment & Shipping Terms
Minimum Order Quantity: 100yard/roll
Price: negotiable
Packaging Details: 1480mm*100yard/roll
Delivery Time: 3-15 days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal,Credit card, D/P, D/A
Supply Ability: 500000 roll per month
Colour: |
Polypropylene |
Conventional Thickness: |
0.05mm,0.08mm,0.1mm,0.12mm |
Conventional Width: |
500mm,1000mm,1280,1480mm |
Finished Product: |
1000mm*100yard/roll |
Material: |
Polypropylene |
MOQ: |
1ROLL |
Payment Term: |
Credit Card,Paypal,TT |
Usage: |
Bonding For PP Materials |
Colour: |
Polypropylene |
Conventional Thickness: |
0.05mm,0.08mm,0.1mm,0.12mm |
Conventional Width: |
500mm,1000mm,1280,1480mm |
Finished Product: |
1000mm*100yard/roll |
Material: |
Polypropylene |
MOQ: |
1ROLL |
Payment Term: |
Credit Card,Paypal,TT |
Usage: |
Bonding For PP Materials |

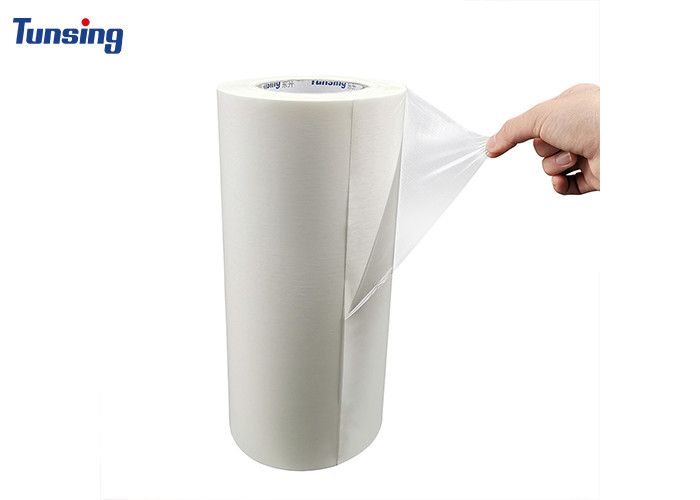

Hot melt adhesive film DS617 is a thermoplastic bonding material that can be repeatedly heated to plasticize and bond. This hot melt adhesive has good adhesion to plastic polypropylene PP, polyethylene PE and textiles.
Physical Characteristics:
| Color | Foggy translucent |
| Opening time | 10min (Tunsing) |
| Melting range | 100-120℃ (Tunsing DSC 214) |
| MI Index | 15±5g/10min (ASTM D1238-04) |
| Activation Temperature | 116-157℃ (Tunsing) |
| Release Line | Glassine release paper |
| Conventional Thickness | 0.05mm,0.08mm,0.12mm |
| Width Range | 500mm,1000mm,1280mm,1480mm |
| Conventional length | 100 yards |
| Length | 1000mm*100yard/roll |
Recommended Bonding Conditions:
| First Lamination: | |
| Machine Setting: | 140℃-170℃ |
| Time: | 8-15 seconds |
| Pressure: | 0.3-0.6mpa |
| Second Implanting: | |
| Machines Setting: | 140℃-180℃ |
| Time: | 8-25 seconds |
| Pressure: | 0.3-0.6mpa |
1. Bonding temperature, pressure and time relate to the bonding strength of the film to the material. The bonding temperature must be close to the temperature set by the machine, the pressure must be uniform, and the mold and pressure roller must be flat.
2. The bonding conditions used will vary between different machines and materials. The conditions indicated here are only basic. The most ideal bonding conditions should be established for specific applications by manufacturing.
The advantages by using hot melt adhesive film as follows:
1. Clean;
2. Eco-friendly;
3. High efficiency. The fast bonding speed could make the process done in several seconds.
4. Safety. This product is non-solvent and it could not make any hidden trouble in production;
5. Hot melt adhesive film has good fastness performance than other glue which could be widely used to laminate many materials;
6. Automatic production can be realized.
7. Portable and easily operated.
8. Reusable. The hot melt adhesive film used for the first time can be heated up and spun off for the second time usage by heating and melting again.
9. Functional features. The hot melt adhesive is good at dry cleaning, washable, low-temperature resistance, high-temperature resistance and other kinds of good features;
10. Can be used as both adhesives and sealants;
1. We are environmentally friendly adhesive enterprises to ensure the environmental performance of raw materials
2. Own factory, efficient technical equipment, a number of production lines
3. Professional R & D team, set production, research and development, sales as one of the new enterprises
4. Service thoughtful, short delivery cycle
FQA
Q1).Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don't hesitate to let us know,
Q2).How do you ship the products?
If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc,
Q3). Do you provide free sample? And how many days it will take?
Yes, of course.we provide free 3-5Y sample for your testing only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation., then you will have more confidence in our product quality and service,
Q4). How long is the lead time?
Sample lead time: 1-3 days Bulk lead time: 7-20days(depends on order quantity)
Q5). How do I pay for my order?
We usually accept L/C ,T/T ,Western Union , Paypal.
