Product Details
Place of Origin: China
Brand Name: TUNSING
Certification: RoHs, REACH,
Model Number: DS019YME
Payment & Shipping Terms
Minimum Order Quantity: 100 yards
Price: USD 0.2-0.4per yard
Packaging Details: 100 yards in one roll
Delivery Time: shipped in 3-5days after payment
Payment Terms: T/T
Supply Ability: 3000kg per day
Keywords: |
Hot Melt Film |
Release Liner: |
Glassine Release Paper |
Melt Point: |
65-95℃ |
Melt Flow Index: |
75±15gram/10min |
Finished Product: |
500mm*100yards/roll |
Conventional Thickness: |
0.18mm |
Keywords: |
Hot Melt Film |
Release Liner: |
Glassine Release Paper |
Melt Point: |
65-95℃ |
Melt Flow Index: |
75±15gram/10min |
Finished Product: |
500mm*100yards/roll |
Conventional Thickness: |
0.18mm |

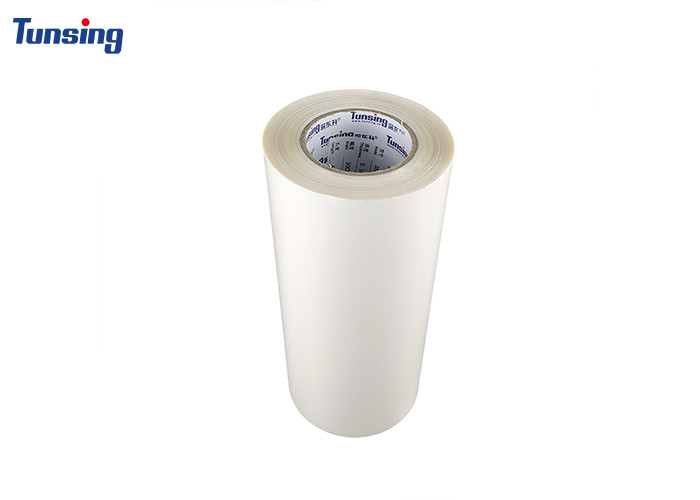

0.18mm Thickness EAA Self Adhesive Hot Melt Film For Fabric Embroidery
Hot Melt Film Product::DS019YME
Hot Melt Film Description
This product is a self-adhesive hot melt film.Double-layer structure: one layer is hot-melt adhesive (no viscosity at room temperature, it needs to be warmed and glued), the other layer is acrylic acid pressure sensitive adhesive (room temperature has self-adhesive energy, entrusted release paper). Self-adhesive layer can be below 150 degrees temperature no glue falling,not lose viscosity, and can be repeatedly pasted, in line with the European demand index.
Hot Melt Film Composition: Ethylene acrylic copolymer and acrylate
Hot Melt Film Technical Parameters:
|
Color |
Transparent |
Release liner |
Glassine release paper |
|
Density |
0.958±0.02g/cm3 |
Conventional Thickness |
0.18mm |
|
Melting point |
65-95℃(Tunsing DSC 214) |
Width |
6mm-1000mm |
|
Melt Flow Index |
75±15g/10min(ASTM D1238-04) |
Length |
500mm |
|
Operating Temperature |
93-116℃ (Tunsing) |
Conventiona Length |
100 yard |
|
Washing Resistant Time |
40℃ |
Finished Products |
500mm*100yard/roll |
Hot Melt Film Technical Parameters:
|
First Lamination |
Second Implanting |
||
|
Mechanical Mold Temperature |
110℃-130℃ |
Mechanical Mold Temperature |
110℃-130℃ |
|
Adhesive Time |
5-15S |
Packing Time |
8-25S |
|
Pressure |
0.3-0.6mpa |
Pressure |
0.3-0.6mpa |
Hot Melt Film Application
DS019YME is used for positioning hot pressing after embroidery trademarks, logos or cutting pieces.
The advantages of the hot melt adhesive film when compare to traditional glue bonding:
1. Eliminate the complicated process of glue application and do not need the related equipments;
2. Bonding fastly, heating and cooling, stick firmly;
3. The bonding fastness to textiles, leather, fabrics and glass fiber products is better than the glue with the same price;
4. Eco friendly, no harm to the environment and human body;
5. Do not need to worry about glue leakage during the bonding, and thematerials will be clean, tidy and no peculiar smell after bonding;
6. The bonded material will not fall off, wrinkle, or foam after washing and dry cleaning.
Hot Melt Film Package
It can ship by FedEX. It will need 5-7 days at usual. Also can by sea and air.
Exhibition
FQA
Q1).Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don't hesitate to let us know,
Q2).How do you ship the products?
If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc,
Q3). Do you provide free sample? And how many days it will take?
Yes, of course.we provide free 3-5Y sample for your testing only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation., then you will have more confidence in our product quality and service,
