Product Details
Place of Origin: China, Shenzhen
Brand Name: TUNSING
Certification: RoHs, REACH,
Model Number: DS019300M
Payment & Shipping Terms
Minimum Order Quantity: 100 yards
Price: USD 0.2-0.4per yard
Packaging Details: 1 roll in per carton, 100 yards in one roll
Delivery Time: shipped in 3-5days after payment
Payment Terms: T/T
Supply Ability: 3000kg per day
Keywords: |
Hot Melt Adhesive Film |
Melt Point: |
70-95℃ |
Melt Index: |
300±30g/10min |
Activation Temperature: |
100-130℃ |
Pressure: |
0.3-0.6mpa |
First Lamination Mechanical Mold Temperature: |
120℃-140℃ |
Second Lamination Mechanical Mold Temperature: |
120℃-150℃ |
Finished Product: |
500mm*100yards/roll |
Keywords: |
Hot Melt Adhesive Film |
Melt Point: |
70-95℃ |
Melt Index: |
300±30g/10min |
Activation Temperature: |
100-130℃ |
Pressure: |
0.3-0.6mpa |
First Lamination Mechanical Mold Temperature: |
120℃-140℃ |
Second Lamination Mechanical Mold Temperature: |
120℃-150℃ |
Finished Product: |
500mm*100yards/roll |

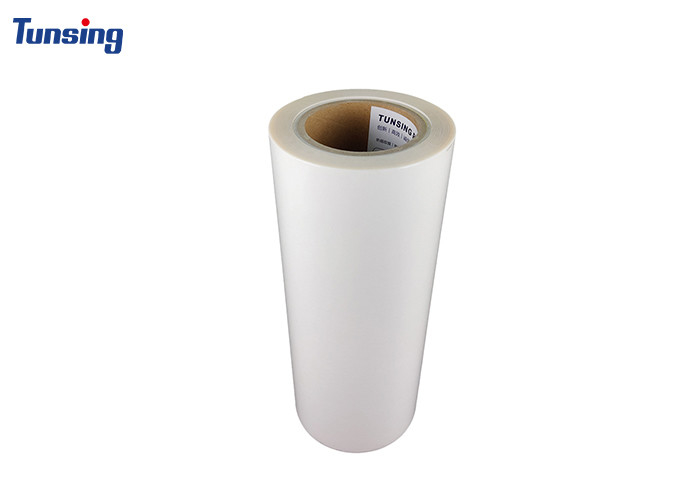

DS019300M EAA Hot Melt Adhesive Film for Aluminum 500mm*100yards/Roll
Hot Melt Adhesive Film Description
This product is a thermoplastic hot-melt adhesive film, which is entrusted to release paper and can be repeatedly heated and plasticized for bonding. This hot melt adhesive has excellent adhesion to textiles and aluminum.
Hot Melt Adhesive Film Technical Parameters:
|
Color |
Transparent |
Release Protection |
Glassine Release Paper |
|
Proportion |
0.958±0.02g/cm³ |
Conventional Thickness |
0.05mm,0.08mm,0.1mm,0.12mm,0.15mm,0.18mm |
|
Melting Range |
70-95℃(Tunsing DSC 214) |
Width Range |
5mm-1480mm |
|
Liquidity Index |
300±30g/10min (ASTM D1238-04) |
Conventional Width |
500mm,1000mm,1280mm,1480mm |
|
Activation Temperature |
100-130℃ (Tunsing) |
Conventional Length |
100 yards |
|
Washing Resistance |
40℃ |
Finished Product |
500mm*100yards/roll |
Hot Melt Adhesive Film Technical Parameters:
|
First Lamination |
Second Implanting |
||
|
Mechanical Mold Temperature |
120℃-140℃ |
Mechanical Mold Temperature |
120℃-150℃ |
|
Hot Pressing Time |
5-15 seconds |
Hot Pressing Time |
8-25 seconds |
|
Pressure |
0.3-0.6mpa |
Pressure |
0.3-0.6mpa |
The advantages by using hot melt adhesive film as follows:
1. Clean;
2. Eco-friendly;
3. High efficiency. The fast bonding speed could make the process done in several seconds.
4. Safety. This product is non-solvent and it could not make any hidden trouble in production;
5. Hot melt adhesive film has good fastness performance than other glue which could be widely used to laminate many materials;
6. Automatic production can be realized.
7. Portable and easily operated.
8. Reusable. The hot melt adhesive film used for the first time can be heated up and spun off for the second time usage by heating and melting again.
9. Functional features. The hot melt adhesive is good at dry cleaning, washable, low-temperature resistance, high-temperature resistance and other kinds of good features;
10. Can be used as both adhesives and sealants;
Hot Melt Adhesive Film Application
DS019300M is used in clothing, embroidery, footwear,luggage, handbags, toys, hats, sports goods, etc.
Customer feedback
Lea Li
What'sapp: +8618123754654 Tel: +8618123754654
Hot Melt Adhesive Film Package
It can ship by FedEX. It will need 5-7 days at usual. Also can by sea and air.
3-5yards free sample for you to testing, you just pay to the shipping fee.
