Product Details
Place of Origin: China, Shenzhen
Brand Name: TUNSING
Certification: RoHs, REACH,
Model Number: DS019300M
Payment & Shipping Terms
Minimum Order Quantity: 100 yards
Price: USD 0.2-0.4per yard
Packaging Details: 1 roll in per carton, 100 yards in one roll
Delivery Time: shipped in 3-5days after payment
Payment Terms: T/T
Supply Ability: 3000kg per day
Keywords: |
Hot Melt Adhesive Film |
Melt Point: |
70-95℃ |
Melt Index: |
300±30g/10min |
Activation Temperature: |
100-130℃ |
Pressure: |
0.3-0.6mpa |
First Lamination Mechanical Mold Temperature: |
120℃-140℃ |
Second Lamination Mechanical Mold Temperature: |
120℃-150℃ |
Finished Product: |
500mm*100yards/roll |
Keywords: |
Hot Melt Adhesive Film |
Melt Point: |
70-95℃ |
Melt Index: |
300±30g/10min |
Activation Temperature: |
100-130℃ |
Pressure: |
0.3-0.6mpa |
First Lamination Mechanical Mold Temperature: |
120℃-140℃ |
Second Lamination Mechanical Mold Temperature: |
120℃-150℃ |
Finished Product: |
500mm*100yards/roll |

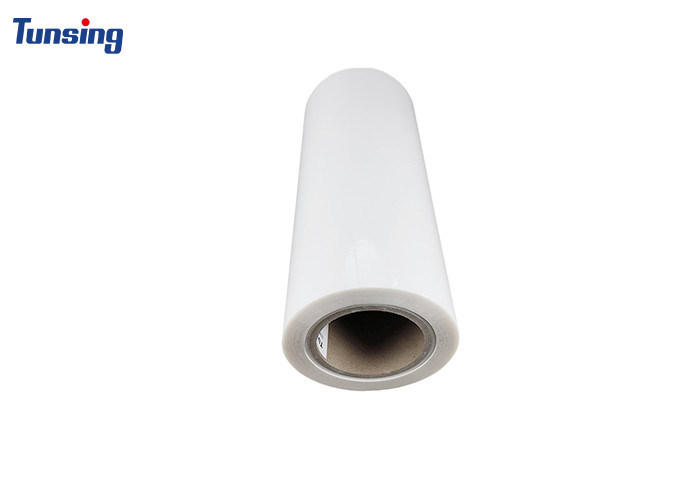

Melting Point 70-95℃ DS019300M EAA Hot Melt Adhesive Filml For Aluminum
Hot Melt Adhesive Film Description
This product is a thermoplastic hot-melt adhesive film, which is entrusted to release paper and can be repeatedly heated and plasticized for bonding. This hot melt adhesive has excellent adhesion to textiles and aluminum.
Hot Melt Adhesive Film Technical Parameters:
|
Color |
Transparent |
Release Protection |
Glassine Release Paper |
|
Proportion |
0.958±0.02g/cm³ |
Conventional Thickness |
0.05mm,0.08mm,0.1mm,0.12mm,0.15mm,0.18mm |
|
Melting Range |
70-95℃(Tunsing DSC 214) |
Width Range |
5mm-1480mm |
|
Liquidity Index |
300±30g/10min (ASTM D1238-04) |
Conventional Width |
500mm,1000mm,1280mm,1480mm |
|
Activation Temperature |
100-130℃ (Tunsing) |
Conventional Length |
100 yards |
|
Washing Resistance |
40℃ |
Finished Product |
500mm*100yards/roll |
Hot Melt Adhesive Film Technical Parameters:
|
First Lamination |
Second Implanting |
||
|
Mechanical Mold Temperature |
120℃-140℃ |
Mechanical Mold Temperature |
120℃-150℃ |
|
Hot Pressing Time |
5-15 seconds |
Hot Pressing Time |
8-25 seconds |
|
Pressure |
0.3-0.6mpa |
Pressure |
0.3-0.6mpa |
The advantages of the hot melt adhesive film when compare to traditional glue bonding:
1. Eliminate the complicated process of glue application and do not need the related equipments;
2. Bonding fastly, heating and cooling, stick firmly;
3. The bonding fastness to textiles, leather, fabrics and glass fiber products is better than the glue with the same price;
4. Eco friendly, no harm to the environment and human body;
5. Do not need to worry about glue leakage during the bonding, and thematerials will be clean, tidy and no peculiar smell after bonding;
6. The bonded material will not fall off, wrinkle, or foam after washing and dry cleaning.
Hot Melt Adhesive Film Application
DS019300M is used in clothing, embroidery, footwear,luggage, handbags, toys, hats, sports goods, etc.
Customer feedback
Lea Li
What'sapp: +8618123754654 Tel: +8618123754654
Hot Melt Adhesive Film Package
It can ship by FedEX. It will need 5-7 days at usual. Also can by sea and air.
3-5yards free sample for you to testing, you just pay to the shipping fee.
FQA
Q1). Do you provide free sample? And how many days it will take?
Yes, of course.we provide free 3-5Y sample for your testing only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation., then you will have more confidence in our product quality and service,
Q2). How long is the lead time?
Sample lead time: 1-3 days Bulk lead time: 7-20days(depends on order quantity),
Q3). How do I pay for my order?
We usually accept L/C ,T/T ,Western Union , Paypal.
