Product Details
Place of Origin: China
Brand Name: Tunisng
Certification: SGS , ISO9001
Model Number: DS0012
Payment & Shipping Terms
Minimum Order Quantity: 200Y
Price: negotiable
Packaging Details: 100yard/roll, 2~4roll/CTN, or it's up on the customer's option
Delivery Time: 3-10 days
Payment Terms: T/T, PayPal
Supply Ability: 40000 Square meters per day
Color: |
Milk White Translucent |
Melting Point(°C): |
85-120℃ |
Melt Index(g/10min): |
20±10g/10min; Condition:ASTMD1238-04 |
Hot Pressing Temperature(°C): |
130°C -180°C |
Physical Form: |
Glassine Release Paper |
Length: |
100m |
Density: |
1.15±0.02g/cm³ |
Washing Resistant Time: |
40°C/72H |
Color: |
Milk White Translucent |
Melting Point(°C): |
85-120℃ |
Melt Index(g/10min): |
20±10g/10min; Condition:ASTMD1238-04 |
Hot Pressing Temperature(°C): |
130°C -180°C |
Physical Form: |
Glassine Release Paper |
Length: |
100m |
Density: |
1.15±0.02g/cm³ |
Washing Resistant Time: |
40°C/72H |

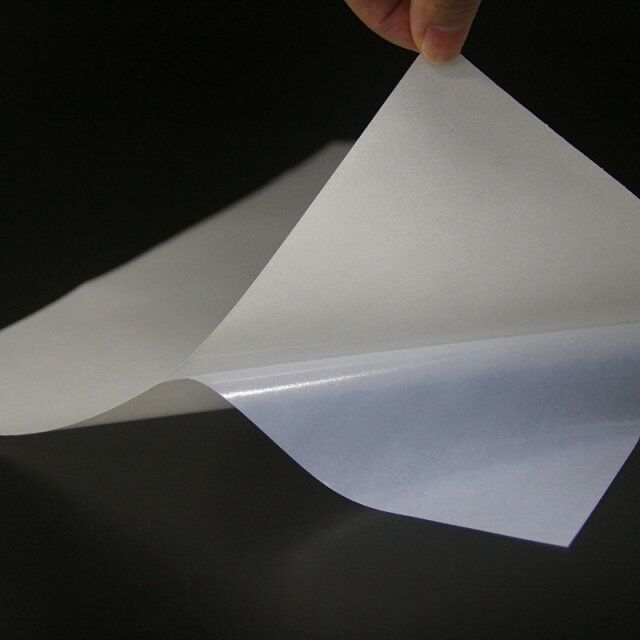

For Heat Transfer Vinly Similar Bemis 5256 Polyester Hot Melt Adhesive Film:
Quick detail:
This product is a thermoplastic film hot melt adhesive, entrusted to the release of paper, can be repeatedly heated plasticized bonding.This kind of hot melt adhesive has excellent adhesion to textile products, PVC and PC.This product is resistant to dry cleaning and 40℃ washing.
Physical Characteristics:
| Colour | Milky white translucent | Release Protection | Glassine Release Paper |
| Proportion | 1.15±0.02g/cm³ | Conventional Thickness | 0.06mm0.08mm,0.10mm,0.12mm,0.15mm,0.18mm |
| Melting Range | 85-120℃ (Tunsing DSC 214) | Width | 10mm-1480mm |
| Liquidity Index | 20±10g/10mi (ASTM D1238-04) | Conventional Width | 500mm,1000mm,1280mm,1480mm |
| Activation Temperature | 116-157℃ (Tunsing) | Conventional Length | 100 M |
| Washing Resistant | 40℃ | Finished Product | 500mm*100M/roll |
Recommended Bonding Conditions:
| First Lamination | Second Implanting | ||
| Mechanical Mold Temperature | 130℃-140℃ | Mechanical Mold Temperature | 130℃-180℃ |
| Hot Pressing Time | 5-15 seconds | Hot Pressing Time | 8-25 seconds |
| Pressure | 0.3-0.6mpa | Finished Product | 0.3-0.6mpa |
Applications:
DS0012 is applied to the adhesion of clothing, shoes, accessories, reflective materials, handbags, bags, embroidery and handicrafts.
NOTICE:
1, Bonding temperature and pressure as well as the time involved in the strength of the film to material. Bonding temperature must be close to the machine set the temperature, the pressure must be uniform, mold and pressure roller must be flat.
2, In different machinery and materials, the bonding conditions used will be different. The conditions marked here are only basic. The optimum bonding conditions should be made by creating suitable construction conditions for the particular application damage, direct or consequential, arising out of the use, misuse or inability to use the product.
Customer Feedback:
The advantages by using hot melt adhesive film
1. Clean;
2. Eco-friendly;
3. High efficiency. The fast bonding speed could make the process done in several seconds.
4. Safety. This product is non-solvent and it could not make any hidden trouble in production;
5. Hot melt adhesive film has good fastness performance than other glue which could be widely used to laminate many materials;
6. Automatic production can be realized.
7. Portable and easily operated.
8. Reusable. The hot melt adhesive film used for the first time can be heated up and spun off for the second time usage by heating and melting again.
9. Functional features. The hot melt adhesive is good at dry cleaning, washable, low-temperature resistance, high-temperature resistance and other kinds of good features;
10. Can be used as both adhesives and sealants;
Packing & Shipping:
Packing: 100 yard in roll, 2 rolls in case
Shipping: 5-7days by Express (DHL, FedEx, USP and so on)
Why Choose Us
1, More than 10 years experience in production.
2, Well-known products: Sichuan Famous Brand.
3, Good quality control in production process: Quality Service AAA Grade Credit Enterprise
4, Excellent quality and Competitive price, OEM is available.
5, Stable supply: an extensive range of stock.
6, The whole process from material to end products is under supervision.
FAQ
Q1: What is hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your products needs, then recommend you right products,
Q2: Do you accept OEM or ODM?
A: Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us know,
Q3: Do you provide free sample? And how many days it will take?
A: Yes, of course.we provide free 3-5Y sample for your testing only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation., then you will have more confidence in our product quality and service
Q4: How do you ship the products?
A: If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc,
Q5: How long is the lead time?
A: Sample lead time: 1-3 days
Bulk lead time: 7-20days(depends on order quantity
Q6: How do I pay for my order?
A: We usually accept L/C ,T/T ,Western Union , Paypal.
