Product Details
Place of Origin: China
Brand Name: TUNSING
Certification: SGS, ISO9001,Oeko-Tex
Model Number: DS8501
Payment & Shipping Terms
Minimum Order Quantity: 100yards
Price: negotiable
Packaging Details: 1-4 rolls in one box，each with black PP bag
Delivery Time: 3 days after payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3000000 yards per month
Material: |
TPU |
Melt Flow Index: |
Melt Flow Index |
Melting Range: |
110-140℃ (Tunsing DSC 214) |
Hardness: |
81±3 （Shore A） |
Conventional Thickness: |
0.15mm |
Conventional Width: |
1380mm |
Activation Temperature: |
125-174℃ （Tunsing） |
Operating Temperature: |
150-200 |
Material: |
TPU |
Melt Flow Index: |
Melt Flow Index |
Melting Range: |
110-140℃ (Tunsing DSC 214) |
Hardness: |
81±3 （Shore A） |
Conventional Thickness: |
0.15mm |
Conventional Width: |
1380mm |
Activation Temperature: |
125-174℃ （Tunsing） |
Operating Temperature: |
150-200 |

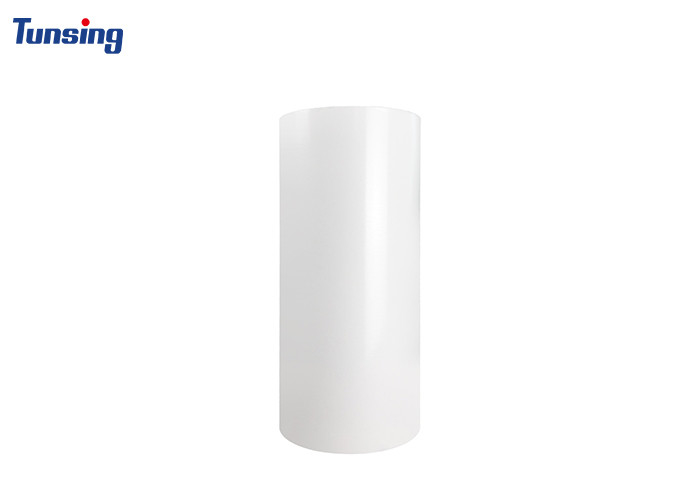

High Temperature TPU Double Sided Hot Melt Adhesive Glue Film Tape for NO Sew Bonding
Product:DS8501
Despription:
This product is a thermoplastic hot-melt adhesive film, which is supported by release paper and can be repeatedly heated and plasticized. This hot melt adhesive has excellent adhesion to textiles, TPU, PVC, and has good feel and resilience, and excellent cold resistance.
Physical Characteristics:
| Colour | Transparent | Release Protection | Glassine Release Paper |
| Proportion | 1.18±0.02g/cm³ | Thickness | 0.0125mm-0.15mm |
| Opening Time | 10min | Width | 5mm-1480mm |
| Melt Flow Index | 5±3g/10mins (ASTM D1238-04) | Conventional Thickness | 0.15mm |
| Hardness | 81±3 (Shore A) | Conventional Width | 1380mm |
| Melting Range | 110-140℃ (Tunsing DSC 214) | Conventional Length | 100 yards |
| Activation Temperature | 125-174℃ (Tunsing) | Finished Product | 1380mm*100yards/roll |
Free sample:
We provide you free sample,and you need to pay the shipping cost.
Why should you choose us?
Our company was founded in 2007 and it has passed ISO9001:2015 quality management system certification, and all products in our company are up to RoHS,REACH, Oeko-tex, California Proposition 65, Halogen Test Report, PFOA, PFOS, PAHS, HBCDD and other environmental standards.
Application:DS8501 is used in clothing, embroidery, footwear, luggage, handbags, toys, hats, sports materials.
Recommended Bonding Conditions:
| First Lamination | Second Implanting | ||
| Mechanical Mold Temperature | 150℃-170℃ | Mechanical Mold Temperature | 160℃-200℃ |
| Time | 5-15 seconds | Time | 8-25 seconds |
| Pressure | 0.3-0.6mpa | Pressure |
0.3-0.6mpa
|
Customer Feedback:
Shipping & Packing:
Packing: 100 yard in roll, 2 rolls in case
FAQ
1 . How about hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point,it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your demands,then recommend you right products to you.
2. Do you accept OEM or ODM?
Yes ,we accept OEM and ODM,we are professional heat transfer material manufacturer ,having more than 10years experience.able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us konw.
3. How do you transport the products?
If you are not urgent, we usually transport by ship because it is the cheapest way. But for the West Asia area,
we deliver by train because there is no sea to ship. And for samples and urgent cargo, we transport it by air as it is the fastest way.Of course if you have other better idea about transport, we will accept it.
4. May I have your samples?
If you need some sample for reference,please let us know your fully address/ship
mode with courier,and we will arrange sample for your reference.
5. How long is the lead time?
Sample lead time:3-7 days
Bulk lead time:7-10 days(depends on order quantity)
6. How do I pay for my order?
We accept L/C ,T/T ,Western Union , Paypal
