Product Details
Place of Origin: China
Brand Name: TUNSING
Certification: ISO 9001 SGS Oeke-TEX
Model Number: DS019100R
Payment & Shipping Terms
Minimum Order Quantity: 100yards or 100 meters
Price: Negotation
Packaging Details: 1rolls in one box，each with black PP bag
Delivery Time: 3-7working days after received the payment
Payment Terms: L/C, T/T, Western Union, Western Union
Supply Ability: 3000000 yards per month
Color: |
Transparent |
Melting Range: |
80-110℃ （Tunsing DSC 214) |
Liquidity Index: |
60-95g/10min (ASTM D1238-04) |
Conventional Thickness: |
0.05mm,0.08mm,0.1mm,0.12mm,0.15mm,0.18mm |
Width Range: |
5mm-1480mm |
Washing Resistance: |
40℃ |
Activation Temperature: |
123-160℃ （Tunsing） |
Operating Temperature: |
140-190℃ |
Color: |
Transparent |
Melting Range: |
80-110℃ （Tunsing DSC 214) |
Liquidity Index: |
60-95g/10min (ASTM D1238-04) |
Conventional Thickness: |
0.05mm,0.08mm,0.1mm,0.12mm,0.15mm,0.18mm |
Width Range: |
5mm-1480mm |
Washing Resistance: |
40℃ |
Activation Temperature: |
123-160℃ （Tunsing） |
Operating Temperature: |
140-190℃ |

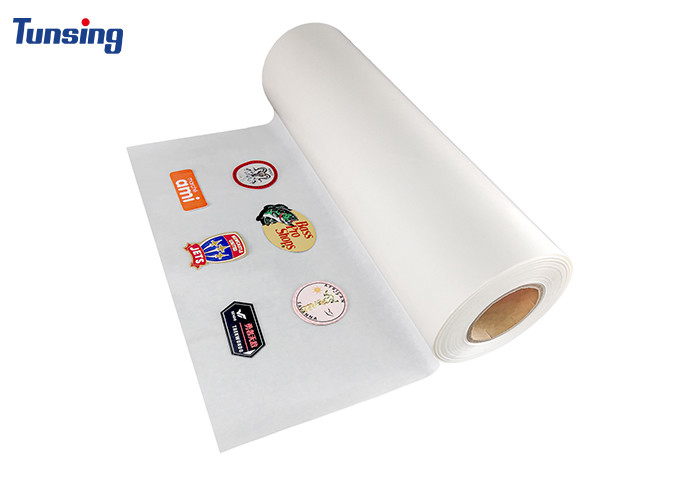

Transparent Polyolefin Film Textile Po Hot Melt Adhesive Film For Embroidery Patch
Product: DS019100R
Description:
This product is a thermoplastic hot-melt adhesive film, which is entrusted to release paper and can be repeatedly heated and plasticized for bonding. This hot melt adhesive has excellent adhesion to textiles and aluminum.
Physical Characteristics:
| Color | Transparent | Release Protection | Glassine Release Paper |
| Proportion | 0.98±0.02g/cm³ | Conventional Thickness | 0.05mm,0.08mm,0.1mm,0.12mm,0.15mm,0.18mm |
| Melting Range | 80-110℃ (Tunsing DSC 214) | Width Range | 5mm-1480mm |
| Liquidity Index | 60-95g/10min (ASTM D1238-04) | Conventional Width | 500mm,1000mm,1280,1480mm |
| Activation Temperature | 123-160℃ (Tunsing) | Conventional Length | 100 yards |
| Washing Resistance | 40℃ | Finished Product | 500mm*100yards/roll |
Recommended Bonding Conditions:
| First Lamination | Second Implanting | ||
| Mechanical Mold Temperature | 140℃-180℃ | Mechanical Mold Temperature | 150℃-190℃ |
| Hot Pressing Time | 5-15 seconds | Hot Pressing Time | 8-25 seconds |
| Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |
Free sample:
We provide you free sample,and you need to pay the shipping cost.
Why should you choose us?
Our company was founded in 2007 and it has passed ISO9001:2015 quality management system certification, and all products in our company are up to RoHS,REACH, Oeko-tex, California Proposition 65, Halogen Test Report, PFOA, PFOS, PAHS, HBCDD and other environmental standards.
Application: DS019100R is used in applications such as packaging, automotive assembly, textiles, electronics, and woodworking. They can be used for bonding various materials together, laminating layers, reinforcing structures, and providing moisture or heat resistance.
Customer Feedback
Packing&Shipping
Why Choose Us
1, more than 10 years experience in production.
2, well-known products: Sichuan Famous Brand.
3, Good quality control in production process: Quality Service AAA Grade Credit Enterprise
4, Excellent quality and Competitive price, OEM is available.
5, Stable supply: an extensive range of stock.
6, The whole process from material to end products is under supervision.
FAQ
Q1) . What is hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your products needs, then recommend you right products,
Q2).Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us know,
Q3).How do you ship the products?
If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc,
Q4). Do you provide free sample? And how many days it will take?
Yes, of course.we provide free 3-5Y sample for your testing only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation., then you will have more confidence in our product quality and service,
Q5). How long is the lead time?
Sample lead time: 1-3 days
Bulk lead time: 7-20days(depends on order quantity),
Q6). How do I pay for my order?
We usually accept L/C ,T/T ,Western Union , Paypal.
