Product Details
Place of Origin: China
Brand Name: TUNSING
Certification: ISO 9001 SGS Oeke-TEX
Model Number: DS-5
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: Negotation
Packaging Details: 200M in a roll, 1 rolls in a carton, or it's up on the customer's request
Delivery Time: 3-5 work days after received the payment
Payment Terms: L/C, T/T, Western Union, Western Union
Supply Ability: 6000000 kg/Month
Colour: |
Transparent |
Melting Range: |
90-120℃ (Tunsing DSC 214) |
Melt Flow Index: |
20±10g/10min （ASTM D1238-04） |
Conventional Thickness: |
0.055mm±0.008mm |
Conventional Width: |
29.2mm |
Operating Temperature: |
140-190℃ |
Colour: |
Transparent |
Melting Range: |
90-120℃ (Tunsing DSC 214) |
Melt Flow Index: |
20±10g/10min （ASTM D1238-04） |
Conventional Thickness: |
0.055mm±0.008mm |
Conventional Width: |
29.2mm |
Operating Temperature: |
140-190℃ |

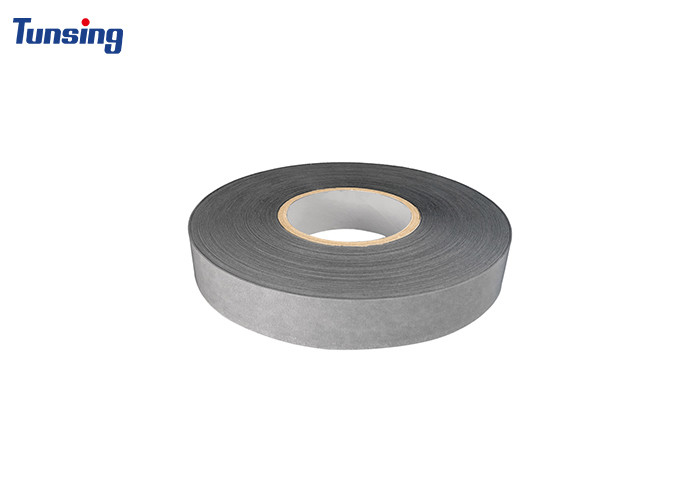

High Temperature Double Sided Thermoplastics Adhesive Tape For SIM Card
Product: DS-5
Description:
The hot melt adhesive is used for embedding of contact smart cards. Excellent adhesion to PVC, ABS, PC, FR-4 and other materials.
This product is a large molecular weight structure type hot-melt tape. The super cohesive force ensures that there is no structural fracture in the thrust and bending test after bonding, and at the same time maintain a balanced bond strength with the chip and the card base. Meet the requirements of ISO7816 standard for chip package fastness.
Physical Characteristics:
| Colour | Transparent | Release Protection | Glassine Release Paper |
| Proportion | 1.2±0.02g/cm³ | Conventional Thickness | 0.055mm±0.008mm |
| Melting Range | 90-120℃ (Tunsing DSC 214) | Conventional Width | 29.2mm |
| Melt Flow Index | 20±10g/10min (ASTM D1238-04) | Conventional Length | 200m |
| Finished Product | 0.055mm*29.2mm*200m | ||
Recommended Bonding Conditions:
| First Lamination | Second Implanting | ||
| Mechanical Mold Temperature | 140℃-160℃ | Mechanical Mold Temperature | 170℃-190℃ |
| Adhesive Time | 0.6S-1.2S | Packing Time | 0.6S-1.2S |
| Pressure | 0.25-0.4mpa | Pressure | 0.25-0.4mpa |
Free sample:
We provide you free sample,and you need to pay the shipping cost.
Why should you choose us?
Our company was founded in 2007 and it has passed ISO9001:2015 quality management system certification, and all products in our company are up to RoHS,REACH, Oeko-tex, California Proposition 65, Halogen Test Report, PFOA, PFOS, PAHS, HBCDD and other environmental standards.
Applications:
DS-5 is suitable for heat sealing of IC cards, SIM cards, financial social security cards, and dual interface bank cards
Customer Feedback:
Packing and Shipping:
Packing: 100 yard in roll, 2 rolls in case
Shipping: 5-7days by Express (DHL, FedEx, USP and so on) and by air, and 30-40 days by sea.
Why Choose Us
1, more than 10 years experience in production.
2, well-known products: Sichuan Famous Brand.
3, Good quality control in production process: Quality Service AAA Grade Credit Enterprise
4, Excellent quality and Competitive price, OEM is available.
5, Stable supply: an extensive range of stock.
6, The whole process from material to end products is under supervision.
FAQ
Q1) . What is hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your products needs, then recommend you right products,
Q2).Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us know,
Q3).How do you ship the products?
If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc,
Q4). Do you provide free sample? And how many days it will take?
Yes, of course.we provide free 3-5Y sample for your testing only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation., then you will have more confidence in our product quality and service,
Q5). How long is the lead time?
Sample lead time: 1-3 days
Bulk lead time: 7-20days(depends on order quantity),
Q6). How do I pay for my order?
We usually accept L/C ,T/T ,Western Union , Paypal.
