Product Details
Place of Origin: China
Brand Name: TUNSING
Certification: ISO 9001 SGS Oeke-TEX
Model Number: DS001TS
Payment & Shipping Terms
Minimum Order Quantity: 100yards or 100 meters
Price: Negotation
Packaging Details: 1PC/PE FILM, 100yard/roll, 2~4roll/CTN, or it's up on the customer's option
Delivery Time: 3-5 work days after received the payment
Payment Terms: L/C, T/T, Western Union, Western Union
Supply Ability: 3000000 yards per month
NAME: |
PES Hot Melt Adhesive Film |
Melting Range: |
80-105℃ (Tunsing DSC 214) |
Melt Flow Index: |
32±15g/10min(ASTM D1238-04) |
Thickness Range: |
0.025mm-0.30mm |
Width Range: |
5mm-1580mm |
Activation Temperature: |
116-150℃ (Tunsing) |
Proportion: |
1.15±0.02g/cm³ |
Operating Temperature: |
130-170℃ |
NAME: |
PES Hot Melt Adhesive Film |
Melting Range: |
80-105℃ (Tunsing DSC 214) |
Melt Flow Index: |
32±15g/10min(ASTM D1238-04) |
Thickness Range: |
0.025mm-0.30mm |
Width Range: |
5mm-1580mm |
Activation Temperature: |
116-150℃ (Tunsing) |
Proportion: |
1.15±0.02g/cm³ |
Operating Temperature: |
130-170℃ |

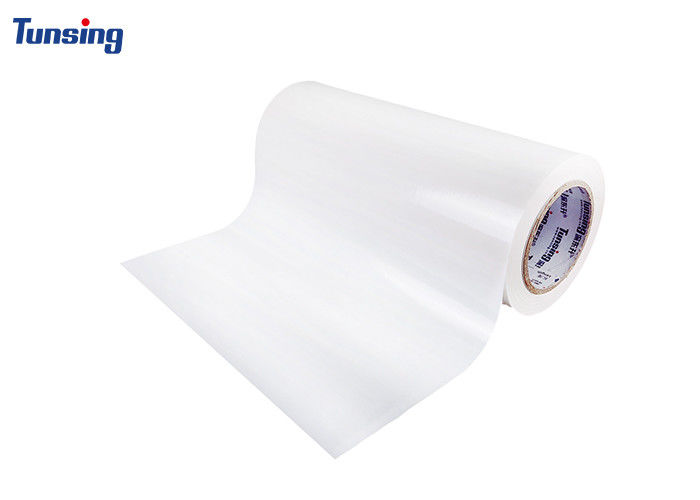

Double Side Polyester Film Glue PES Hot Melt Adhesive Film for PVC
Hot Melt Adhesive Film
PES Hot Melt Adhesive Film
PES Hot Melt Adhesive Film can be reheated and plasticized multiple times for bonding purposes, providing versatility in its application.PES Hot Melt Adhesive Film offers strong adhesion specifically to textile products, PVC, and PC materials, ensuring reliable bonding between these substrates.PES Hot Melt Adhesive Film is resistant to dry cleaning and can withstand washing at temperatures up to 40℃, making it suitable for applications where the bonded materials may undergo cleaning processes without compromising the adhesive bond.
The Physical Characteristics of PES Hot Melt Adhesive Film
1.High Temperature Resistance: PES hot melt adhesive film exhibits good resistance to high temperatures. It can withstand elevated temperatures without losing its adhesive properties or undergoing significant deformation.
2.Flexibility: The PES hot melt adhesive film possesses inherent flexibility, allowing it to conform to various substrates and surfaces with ease. This flexibility contributes to the overall durability and performance of the adhesive bond.
3.Adhesion Strength: PES hot melt adhesive film demonstrates strong adhesion to a wide range of materials, including textiles, plastics, and metals. It forms reliable bonds with excellent adhesive strength, ensuring secure and long-lasting connections.
Physical Characteristics
Colour | Milky white translucent |
Release Layer | Glassine Silicone Release Paper |
Thickness Range | 0.025mm-0.30mm |
Width Range | 5mm-1580mm |
Proportion | 1.15±0.02g/cm³ |
Melt Flow Index | 32±15g/10min(ASTM D1238-04) |
Melting Range | 80-105℃ (Tunsing DSC 214) |
TG Temperature | 0±5℃ (GB/T19466.2-2004) |
Activation Temperature | 116-150℃ (Tunsing) |
Recommended Bonding Conditions
First Lamination | Second Implanting | ||
Mechanical Mold Temperature | 130℃-160℃ | Mechanical Mold Temperature | 130℃-170℃ |
Hot Pressing Time | 5-15 seconds | Hot Pressing Time | 8-25 seconds |
Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |
The Application of PES Hot Melt Adhesive Film
PES (Polyethersulfone) hot melt adhesive film finds application in various industries and bonding scenarios. Its versatile nature allows for effective bonding in different contexts. Here are some common applications of PES hot melt adhesive film:
1.Electronics Industry: PES hot melt adhesive film is employed in electronics assembly for bonding components, securing wires, and providing electrical insulation. Its high adhesion strength and resistance to heat make it suitable for electronic applications.
2.Packaging Industry: PES hot melt adhesive film is used in packaging applications for sealing boxes, cartons, and corrugated boards. PES hot melt adhesive film provides reliable bonding and enhances the overall integrity and strength of the packaging.
3.Medical Industry: PES hot melt adhesive film is employed in medical device manufacturing, such as adhering components, securing dressings, and bonding surgical drapes. Its biocompatibility and resistance to sterilization processes make it suitable for medical applications.
PES Hot Melt Adhesive Film's Customer Feedback
PES Hot Melt Adhesive Film's
Packing & Shipping :
Packing: A3 1500 PCS/Box, A4 2000PCS/Box
Shipping: 5-7days by Express (DHL, FedEx, USP and so on)
