Product Details
Place of Origin: China
Brand Name: TUNSING
Certification: ISO 9001 SGS Oeke-TEX
Model Number: DS3412
Payment & Shipping Terms
Minimum Order Quantity: 100yards or 100 meters
Price: Negotation
Packaging Details: 1PC/PE FILM, 100yard/roll, 2~4roll/CTN, or it's up on the customer's option
Delivery Time: 3-5 work days after received the payment
Payment Terms: L/C, T/T, Western Union, Western Union
Supply Ability: L/C, T/T, Western Union, Western Union
NAME: |
TPU Hot Melt Adhesive Film |
Melting Range(DSC): |
115-135℃(ISO11357) |
Melt Flow Index: |
8±3g/10min（ASTM D1238-04） |
Thickness Range: |
0.025mm-0.30mm |
Width Range: |
5mm-1580mm |
Proportion: |
1.15±0.02g/cm³ |
Activation Temperature: |
155-185℃（Tunsing） |
Operating Temperature: |
145-185℃ |
NAME: |
TPU Hot Melt Adhesive Film |
Melting Range(DSC): |
115-135℃(ISO11357) |
Melt Flow Index: |
8±3g/10min（ASTM D1238-04） |
Thickness Range: |
0.025mm-0.30mm |
Width Range: |
5mm-1580mm |
Proportion: |
1.15±0.02g/cm³ |
Activation Temperature: |
155-185℃（Tunsing） |
Operating Temperature: |
145-185℃ |

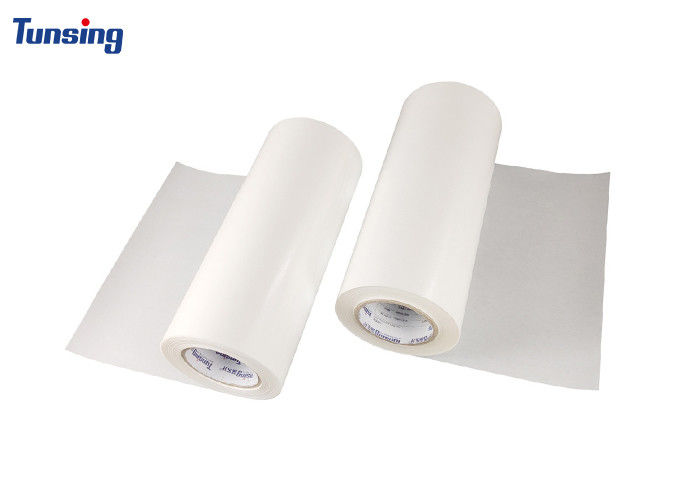

Soft TPU Hot Melt Adhesive Glue Polyurethane Adhesive Film for Yoga Clothes
Hot Melt Adhesive Film
TPU Hot Melt Adhesive Film
TPU Hot Melt Adhesive Film features an exceptional thermoplastic hot melt adhesive film that offers a multitude of benefits. With the ability to be heated and plasticized repeatedly, TPU Hot Melt Adhesive Film provides versatility and convenience in various applications. Our hot melt adhesive film is specifically designed to adhere flawlessly to the soft touch of Lycra, spandex, nylon, Multi-Spandex, and other highly elastic fabrics.Elevate the sensory experience with our adhesive film, which boasts an unparalleled level of softness. The fabric treated with our adhesive film feels incredibly gentle to the touch, providing ultimate comfort.Experience a new level of resilience with our hot melt adhesive film. TPU Hot Melt Adhesive Film exhibits outstanding durability and maintains its adhesive properties even under extreme conditions, ensuring the fabric retains its elasticity and shape over time.
The Physical Characteristics of TPU Hot Melt Adhesive Film
Physical Characteristics
| Color | Transparent |
| Release Protection | Glassine Release Paper |
| Thickness Range | 0.025mm-0.30mm |
| Width Range | 5mm-1580mm |
| Proportion | 1.15±0.02g/cm³ |
| Melt Flow Index | 8±3g/10min(ASTM D1238-04) |
| Hardness | 52±2 (Shore A) |
| Melting Range(DSC) | 115-135℃(ISO11357) |
| Glass transition temperture | -40±7(GB/T 19466.2-2004) |
| Activation Temperature | 155-185℃(Tunsing) |
Recommended Bonding Conditions:
| First Lamination | First Lamination | ||
| Mechanical Mold Temperature | 145℃-165℃ | Mechanical Mold Temperature | 155℃-185℃ |
| Pressure | 5-15 seconds | Pressure | 8-25 seconds |
| Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |
1.Thermoplastic Polyurethane (TPU) Resin: The primary component of the TPU hot melt adhesive film is the TPU resin. TPU is a versatile polymer known for its excellent elasticity, durability, and heat resistance. It provides the adhesive film with its adhesive properties and flexibility.
2.Thermoplastic Polyurethane (TPU) Modifier: To enhance specific characteristics of the adhesive film, modifiers may be added to the TPU resin. These modifiers can improve factors such as softness, resilience, or adhesion strength, depending on the desired properties of the film.
3.Plasticizers: Plasticizers are incorporated into the formulation to enhance the film's flexibility and elongation properties. They improve the film's ability to conform to different surfaces and allow for repeated heating and plasticization without compromising its performance.
4.Stabilizers: Stabilizers are added to the TPU hot melt adhesive film to protect it from degradation caused by heat, oxidation, or UV exposure. These additives help maintain the film's performance and extend its lifespan.
5.Other Additives: Various other additives may be included in the composition of the TPU hot melt adhesive film to enhance specific properties or provide additional functionalities. These additives can include tackifiers, fillers, colorants, or flame retardants, depending on the intended application and requirements.
The Application of TPU Hot Melt Adhesive Film
TPU hot melt adhesive film is commonly used in the production of one-piece underwear and seamless underwear. TPU hot melt adhesive film serves as a bonding agent to join different fabric panels, eliminating the need for stitching or sewing seams. The TPU hot melt adhesive film creates a strong and durable bond between the fabric layers, ensuring a seamless and comfortable finish. TPU hot melt adhesive film is specifically designed to adhere to various fabrics used in underwear manufacturing, including those with super elastic properties such as Lycra, spandex, and nylon. Its heat-activated properties allow for easy application during the production process, resulting in a smooth and seamless appearance of the final garment.
TPU Hot Melt Adhesive Film's
Packing & Shipping :
Packing: A3 1500 PCS/Box, A4 2000PCS/Box
Shipping: 5-7days by Express (DHL, FedEx, USP and so on)
