Product Details
Place of Origin: China
Brand Name: Tunsing
Certification: RoHs, REACH
Model Number: DS8502
Payment & Shipping Terms
Minimum Order Quantity: 100 yards per roll
Price: 0.5-1.3 dollar per yard
Packaging Details: 1 roll per carton
Delivery Time: Shipped in 3-5 days after shippment
Payment Terms: T/T , paypal
Supply Ability: 40000 yards a day
Keywords: |
Hot Melt Adhesive Film |
Colour: |
Transparent |
Proportion: |
1.18±0.02g/cm³ |
Opening Time: |
12min |
Melt Flow Index: |
20±10g/10mins （ASTM D1238-04） |
Hardness: |
72±3 （Shore A） |
Melting Range: |
94-120℃ (Tunsing DSC 214) |
Activation Temperature: |
116-145℃ （Tunsing） |
Keywords: |
Hot Melt Adhesive Film |
Colour: |
Transparent |
Proportion: |
1.18±0.02g/cm³ |
Opening Time: |
12min |
Melt Flow Index: |
20±10g/10mins （ASTM D1238-04） |
Hardness: |
72±3 （Shore A） |
Melting Range: |
94-120℃ (Tunsing DSC 214) |
Activation Temperature: |
116-145℃ （Tunsing） |

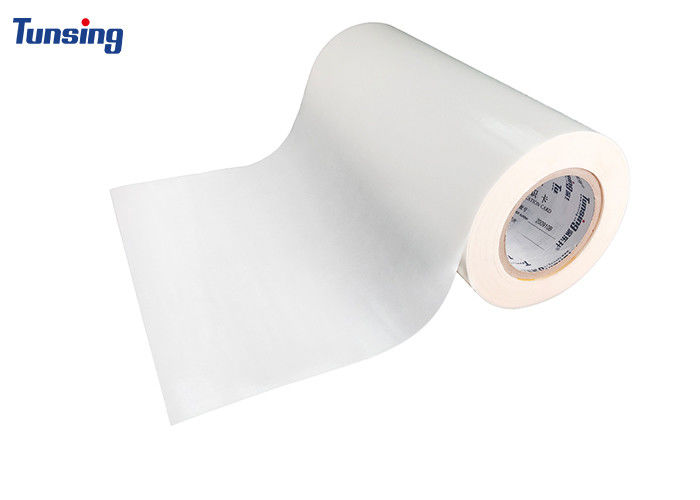

Textile Fabric 0.05mm 0.08mm Thickness Transparent Adhesive Hot Melt Tpu Film
Hot Melt Adhesive Film Description:
This product is a thermoplastic hot-melt adhesive film, which is supported by release paper and can be repeatedly heated and plasticized.
This hot melt adhesive has excellent adhesion to textiles, TPU, PVC, and has good feel and resilience, and excellent cold resistance.
Hot Melt Adhesive Film Characteristics:
| Colour | Transparent | Release Protection | Glassine Release Paper |
| Proportion | 1.18±0.02g/cm³ | Thickness | 0.0125mm-0.15mm |
| Opening Time | 12min | Width | 5mm-1480mm |
| Melt Flow Index | 20±10g/10mins (ASTM D1238-04) | Conventional Thickness | 0.05mm,0.08mm,0.10mm |
| Hardness | 72±3 (Shore A) | Conventional Width | 1380mm |
| Melting Range | 94-120℃ (Tunsing DSC 214) | Conventional Length | 100 yards |
| Activation Temperature | 116-145℃ (Tunsing) | Finished Product | 1380mm*100yards/roll |
Hot Melt Adhesive Film Recommended Bonding Conditions:
| First Lamination | Second Implanting | ||
| Mechanical Mold Temperature | 120℃-150℃ | Mechanical Mold Temperature | 130℃-160℃ |
| Time | 5-15 seconds | Time | 8-25 seconds |
| Pressure | 0.3-0.6mpa | Finished Product | 1380mm*100yards/roll |
Hot Melt Adhesive Film Application
DS8502 is used in the bonding of clothing, embroidery, footwear, luggage, handbags, toys, hats, sports materials.
Hot Melt Adhesive Film buyer feedback
Hot Melt Adhesive Film Package
Our conventional width is 138cm, 100yards per roll.
1 roll in per carton.
About the free sample, we can provide the 3-5yards free sample for you to do the test.
