Product Details
Place of Origin: China
Brand Name: Tunsing
Certification: SGS , ISO9001
Model Number: DS0022
Payment & Shipping Terms
Minimum Order Quantity: 100Y
Price: negotiable
Packaging Details: 1PC/PE FILM, 100yard/roll, 2~4roll/CTN, or it's up on the customer's option
Delivery Time: 5-7days
Payment Terms: Western Union, L/C, T/T, PayPal
Supply Ability: 40000 Square meters per day
NAME: |
PA Hot Melt Adhesive Powder |
Melting Range: |
90-115℃(ISO11357) |
Melt Flow Index: |
20±10g/10min(ASTM D1238-04) |
Conventional Thickness: |
0.055mm |
Width Range: |
5mm-620mm |
Proportion: |
1.2±0.02g/cm³ |
Activation Temperature: |
110-170℃ (Tunsing) |
Operating Temperature: |
130-190℃ |
NAME: |
PA Hot Melt Adhesive Powder |
Melting Range: |
90-115℃(ISO11357) |
Melt Flow Index: |
20±10g/10min(ASTM D1238-04) |
Conventional Thickness: |
0.055mm |
Width Range: |
5mm-620mm |
Proportion: |
1.2±0.02g/cm³ |
Activation Temperature: |
110-170℃ (Tunsing) |
Operating Temperature: |
130-190℃ |

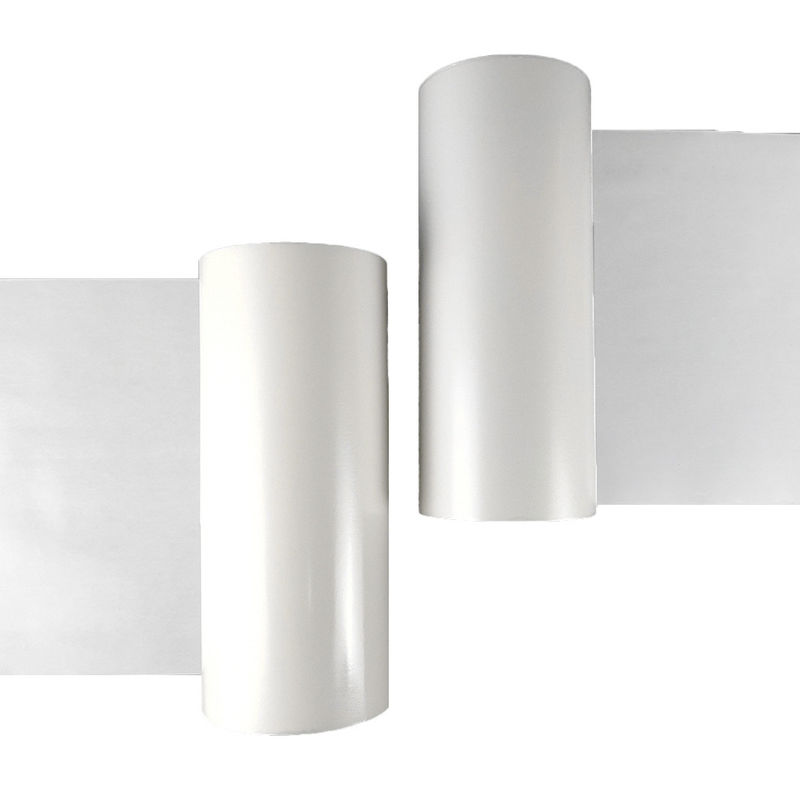

0.05MM 0.1 MM PA Hot Melt Adhesive Glue Polyamide Film Hot Melt Adhesive Film for Textile fabric
Hot Melt Adhesive Film
PA Hot Melt Adhesive Film
Hot Melt Adhesive Film is designed to be heated and plasticized for bonding purposes. Hot Melt Adhesive Film offers a wide range of adhesive properties, making it suitable for various materials such as textile fabrics (cotton, nylon, polyester, acrylic), thermosetting materials (epoxy resin, phenolic resin), PVC, ABS, PC, PI, PU, metal, leather, glass fiber, and composite materials.
One of the advantages of this hot melt adhesive film is its broad activation temperature range, meaning it can be activated and work effectively within a wide temperature range. Additionally, it is resistant to moisture, which can be beneficial in applications where exposure to moisture is a concern.
The Physical Characteristics of PA Hot melt adhesive film
Physical Characteristics
Color | White transparent |
Release Layer | Glassine Release Paper |
Conventional Thickness | 0.055mm |
Width Range | 5mm-620mm |
Proportion | 1.2±0.02g/cm³ |
Melt Flow Index | 20±10g/10min(ASTM D1238-04) |
Melting Range | 90-115℃(ISO11357) |
TG Temperature | 15±8℃ (GB/T19466.2-2004) |
Activation Temperature | 110-170℃ (Tunsing) |
Recommended Bonding Conditions
First Lamination | Second Implanting | ||
Mechanical Mold Temperature | 130℃-190℃ | Mechanical Mold Temperature | 130℃-190℃ |
Hot Pressing Time | 5-15 seconds | Hot Pressing Time | 8-25 seconds |
Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |
1.3C Electronics: The 3C (Computer, Communication, and Consumer Electronics) industry often utilizes hot melt adhesive films for bonding components, such as display assemblies, circuit boards, connectors, and wire harnesses.
2.5G Technology: With the advancement of 5G technology, hot melt adhesive films are used in the manufacturing of 5G-related components, such as antennas, modules, and connectors, to ensure reliable bonding and assembly.
PA Hot Melt Adhesive's Customer Feedback
The PA Hot Melt Adhesive Film provided excellent bonding strength for our 3C electronic components.""We were impressed with the durability and moisture resistance of the PA Hot Melt Adhesive Film in our automotive applications.""The PA Hot Melt Adhesive Film offered reliable bonding for our precision instruments, ensuring stable performance."
PA Hot Melt Adhesive Film's
Packing & Shipping :
Packing: A3 1500 PCS/Box, A4 2000PCS/Box
Shipping: 5-7days by Express (DHL, FedEx, USP and so on)
