Product Details
Place of Origin: China
Brand Name: TUNSING
Certification: ISO 9001 SGS Oeke-TEX
Model Number: DS615B
Payment & Shipping Terms
Minimum Order Quantity: 100yards or 100 meters
Price: Negotation
Packaging Details: 1PC/PE FILM, 100yard/roll, 2~4roll/CTN, or it's up on the customer's option
Delivery Time: 3-5 work days after received the payment
Payment Terms: L/C, T/T, Western Union, Western Union
Supply Ability: 40000 Square meters per day
NAME: |
Hot Melt Adhesive Film |
Melting Range: |
80-100℃(ISO11357) |
Melt Flow Index: |
40±7g/10min(ASTM D1238-04) |
Thickness Range: |
0.025mm-0.30mm |
Width Range: |
5mm-1580mm |
Activation Temperature: |
115-140℃(Tunsing) |
Proportion: |
1.05±0.02g/cm³ |
Operating Temperature: |
150-190℃ |
NAME: |
Hot Melt Adhesive Film |
Melting Range: |
80-100℃(ISO11357) |
Melt Flow Index: |
40±7g/10min(ASTM D1238-04) |
Thickness Range: |
0.025mm-0.30mm |
Width Range: |
5mm-1580mm |
Activation Temperature: |
115-140℃(Tunsing) |
Proportion: |
1.05±0.02g/cm³ |
Operating Temperature: |
150-190℃ |
High Temperature Hot Melt Film Hot Melt Adhesive Film for Mental

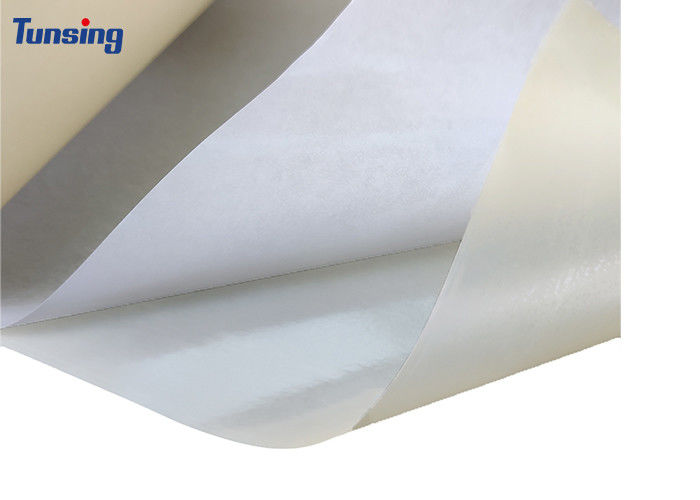

Hot Melt Adhesive Film
The hot melt adhesive film is a thermoplastic film hot melt adhesive with the release paper, can be repeatedly heated plasticizing bonding.This hot melt adhesive film has excellent adhesion to textiles, metals (copper, aluminum, iron, stainless steel), plastics (PC, ABS, glass fiber, etc.), wood and paper.
Hot Melt Adhesive Film's Physical Characteristics
| Colour | Amber |
| Release Layer | Glassine Release Paper |
| Thickness Range | 0.025mm-0.30mm |
| Width Range | 5mm-1580mm |
| Proportion | 1.05±0.02g/cm³ |
| Melt Flow Index | 40±7g/10min(ASTM D1238-04) |
| Melting Range | 80-100℃(ISO11357) |
| TG Temperature | 14±5℃ (GB/T 19466.2-2004) |
| Activation Temperature | 115-140℃(Tunsing) |
Hot Melt Adhesive Film's Application
Hot Melt Adhesive Film is commonly used in the manufacturing of electronic components for consumer electronics, such as smartphones, tablets, and laptops. Hot Melt Adhesive Film can be used as a protective coating, adhesive, or encapsulant for electronic circuits, providing insulation, moisture resistance, and mechanical stability.
Hot Melt Adhesive Film‘s
Packing: 100 yard in roll, 2 rolls in case
Shipping: 5-7days by Express (DHL, FedEx, USP and so on) and by air, 30-40 days by sea
