Product Details
Place of Origin: China
Brand Name: Tunisng
Certification: SGS , ISO9001
Model Number: DS8614
Payment & Shipping Terms
Minimum Order Quantity: 100y
Price: USD 2-5per YARDS
Packaging Details: 1 roll per ctn
Delivery Time: 5-7days
Payment Terms: T/T, Western Union, L/C, Paypal
Supply Ability: 40000 Square meters per day
Color: |
Foggy Translucent |
Density: |
1.18±0.02g/cm³ |
Hardness: |
85±3 (Shore A) |
Melt Flow Index: |
12±5g/10min(ASTM D1238-04) |
Operating Temperature: |
130°C -170°C |
Conventional Thickness: |
0.025mm-0.30mm |
Conventional Width: |
5mm-1580mm |
Conventional Length: |
100 Yards |
Color: |
Foggy Translucent |
Density: |
1.18±0.02g/cm³ |
Hardness: |
85±3 (Shore A) |
Melt Flow Index: |
12±5g/10min(ASTM D1238-04) |
Operating Temperature: |
130°C -170°C |
Conventional Thickness: |
0.025mm-0.30mm |
Conventional Width: |
5mm-1580mm |
Conventional Length: |
100 Yards |
The DS8614 Hot Melt Adhesive Film is a thermoplastic adhesive film featuring a release paper, capable of being repeatedly heated and plasticized for bonding purposes. This versatile hot melt adhesive exhibits exceptional performance on textiles, TPU, and PVC. It is characterized by a low melt flow index, providing a soft hand feel and excellent resilience. Additionally, it boasts superior heat and cold resistance, making it an ideal choice for a variety of applications, including phone cases. This adhesive film measures 138cm in width, perfect for use in manufacturing processes that require precision and durability.
Hot Melt Film for Phone Case Physical Characteristics
DSC & TG Temperature Graph
Colour | Foggy translucent |
Release Protection | Glassine Release Paper |
Thickness Range | 0.025mm - 0.30mm |
Width Range | 5mm - 1580mm |
Proportion | 1.18±0.02g/cm³ |
Melt Flow Index | 12±5g/10min(ASTM D1238-04) |
Hardness | 85±3 (Shore A) |
Melting Range | 35-60℃ (ISO11357) |
TG Temperature | -35±8℃ (GB/T 19466.2-2004) |
Activation Temperature | 110-145℃ (Tunsing) |
Recommended Bonding Conditions:
First Lamination | Second Implanting | ||
Mechanical Mold Temperature | 130℃-150℃ | Mechanical Mold Temperature | 130℃-170℃ |
Time | 5-15 seconds | Time | 8-25 seconds |
Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |
DS8614 development direction and application is for textile fabric,waterproof fabric and so on.
1. Clean;
2. Eco-friendly;
3. High efficiency. The fast bonding speed could make the process done in several seconds.
4. Safety. This product is non-solvent and it could not make any hidden trouble in production;
5. Hot melt adhesive film has good fastness performance than other glue which could be widely used to laminate many materials;
6. Automatic production can be realized.
7. Portable and easily operated.
8. Reusable. The hot melt adhesive film used for the first time can be heated up and spun off for the second time usage by heating and melting again.
9. Functional features. The hot melt adhesive is good at dry cleaning, washable, low-temperature resistance, high-temperature resistance and other kinds of good features;
10. Can be used as both adhesives and sealants;

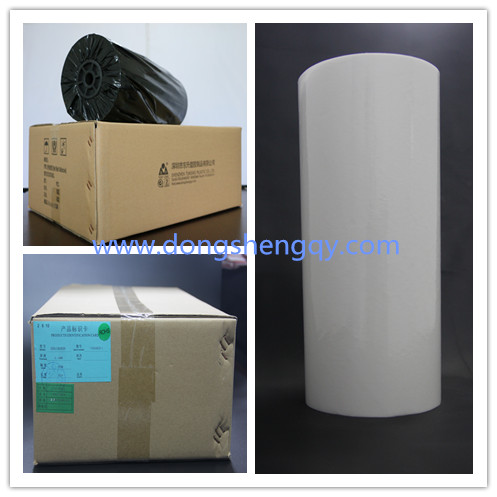

Packing: 100 yard in roll, one rolls in case
Shipping: 5-7days by Express (DHL, FedEx, USP and so on) and by Air, 30-40 days by Sea
Founded in 2007. Eleven years of hot melt adhesive polymer technology team, professional development course, set the development, production, sales as one. The company has passed ISO9000:2008 certification system. From raw materials to the production of R & D and production of the film are strictly implement ISO9000 system control standards.
Q1) . What is hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your products needs, then recommend you right products,
Q2).Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don't hesitate to let us know,
Q3).How do you ship the products?
If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc,
Q4). Do you provide free sample? And how many days it will take?
Yes, of course.we provide free 3-5Y sample for your testing only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation., then you will have more confidence in our product quality and service,
Q5). How long is the lead time?
Sample lead time: 1-3 days
Bulk lead time: 7-20days(depends on order quantity),
Q6). How do I pay for my order?
We usually accept L/C ,T/T ,Western Union , Paypal.
